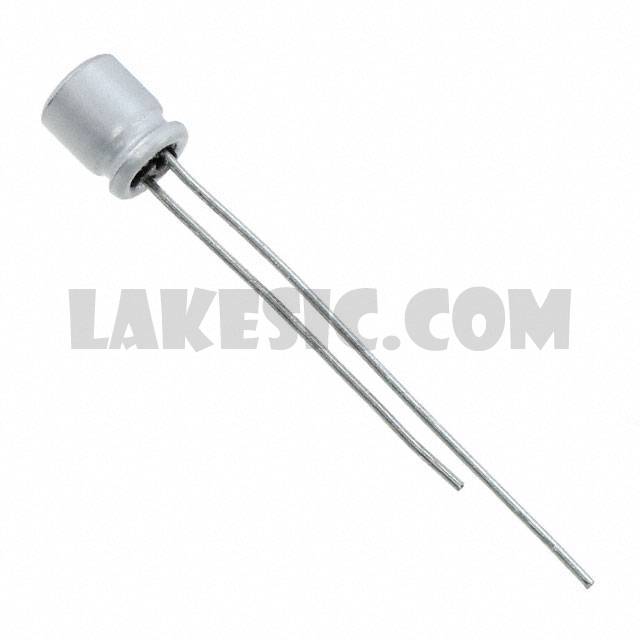

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RNU Series Datasheet
Standard Package	200
Manufacturer	Nichicon
Series	FPCAP, RNU
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	220mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	70mA @ 120Hz
Ripple Current @ High Frequency	700mA @ 100kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
