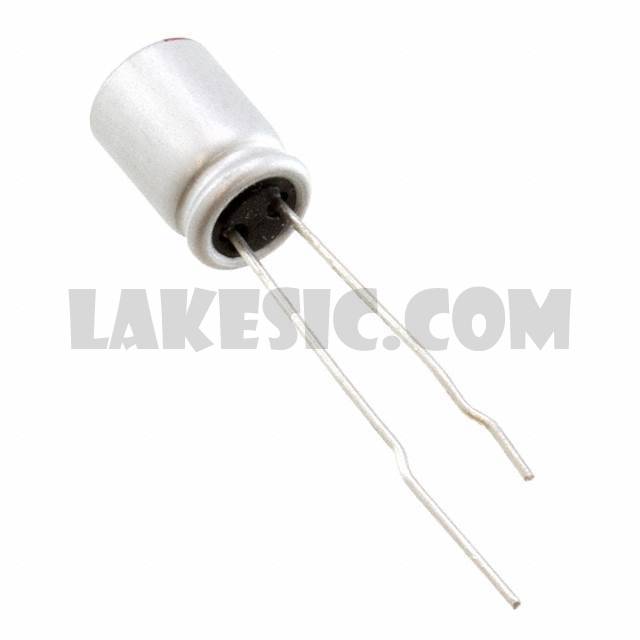

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RNU Series Datasheet
Standard Package	2000
Manufacturer	Nichicon
Series	FPCAP, RNU
Packaging	Tape & Box (TB)
Part Status	Active
Type	Polymer
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	25mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	282mA @ 120Hz
Ripple Current @ High Frequency	2.82A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.453" (11.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

RNU1J330MDN1KX	Nichicon, 33µF 63V Aluminum Polymer Capacitor Radial, Can 26mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1C271MDNASQKX	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 8mOhm 5000 Hrs @ 105°C, FPCAP, RNU	View
RNU1C181MDN1KX	Nichicon, 180µF 16V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1E391MDN1PH	Nichicon, 390µF 25V Aluminum Polymer Capacitor Radial, Can 14mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1C271MDN1KX	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1J560MDN1PH	Nichicon, 56µF 63V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1J390MDN1PH	Nichicon, 39µF 63V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1A122MDN1PH	Nichicon, 1200µF 10V Aluminum Polymer Capacitor Radial, Can 9mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU0E152MDN1KX	Nichicon, 1500µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU0J102MDN1KX	Nichicon, 1000µF 6.3V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1H390MDN1KX	Nichicon, 39µF 50V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View
RNU1E391MDNASQPH	Nichicon, 390µF 25V Aluminum Polymer Capacitor Radial, Can 14mOhm 2000 Hrs @ 105°C, FPCAP, RNU	View

RNU1C101MDS1JX

Part NumberRNU1C101MDS1JX
