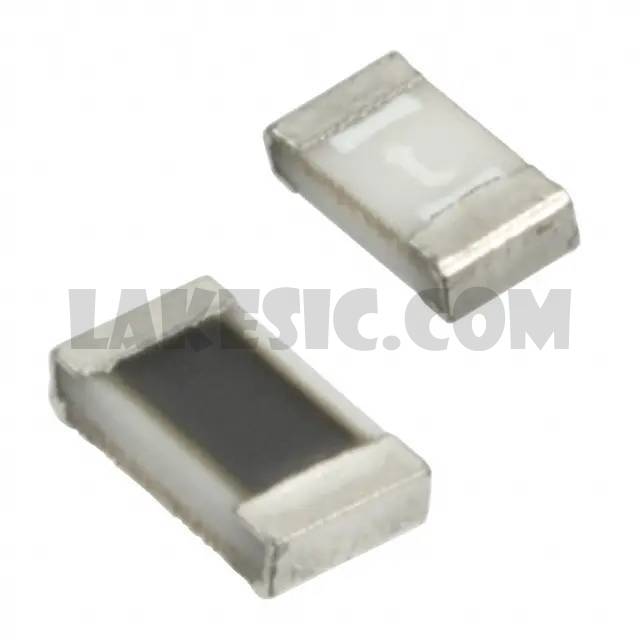

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	RR Series Datasheet
Standard Package	1
Manufacturer	Susumu
Series	RR
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	100 Ohms
Tolerance	±0.5%
Power (Watts)	0.063W, 1/16W
Composition	Thin Film
Features	-
Temperature Coefficient	±25ppm/°C
Operating Temperature	-55°C ~ 125°C
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.020" (0.50mm)
Number of Terminations	2
Failure Rate	-
