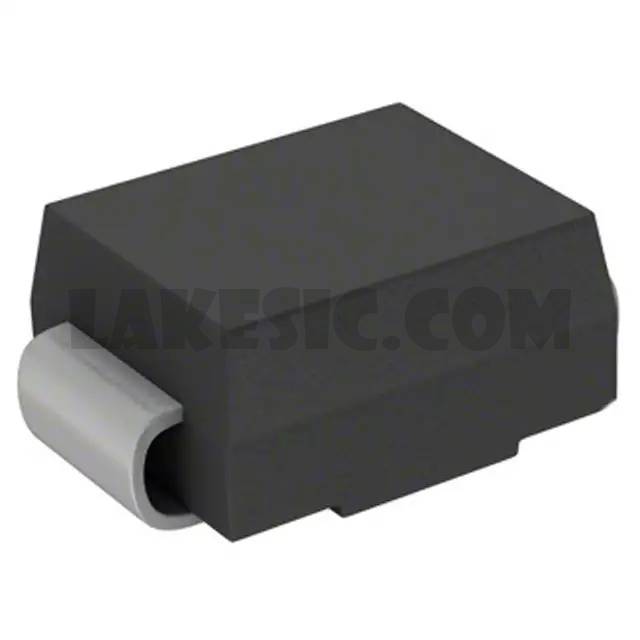

RS2M-13-F

RS2M-13-F

Part NumberRS2M-13-F

ManufacturerDiodes Incorporated

DescriptionDIODE GEN PURP 1KV 1.5A SMB

DatasheetRS2A/A - RS2M/A

Package / CaseDO-214AA, SMB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1000V 1.5A Surface Mount SMB

To learn about the specification of RS2M-13-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RS2M-13-F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RS2M-13-F.
We are offering RS2M-13-F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RS2M-13-F - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	RS2A/A - RS2M/A
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 1.5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	500ns
Current - Reverse Leakage @ Vr	5µA @ 1000V
Capacitance @ Vr, F	30pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	RS2M
