Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	RS3A thru RS3K
Standard Package	850
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 2.5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	500ns
Current - Reverse Leakage @ Vr	10µA @ 800V
Capacitance @ Vr, F	34pF @ 4V, 1MHz
Mounting Type	Surface Mount

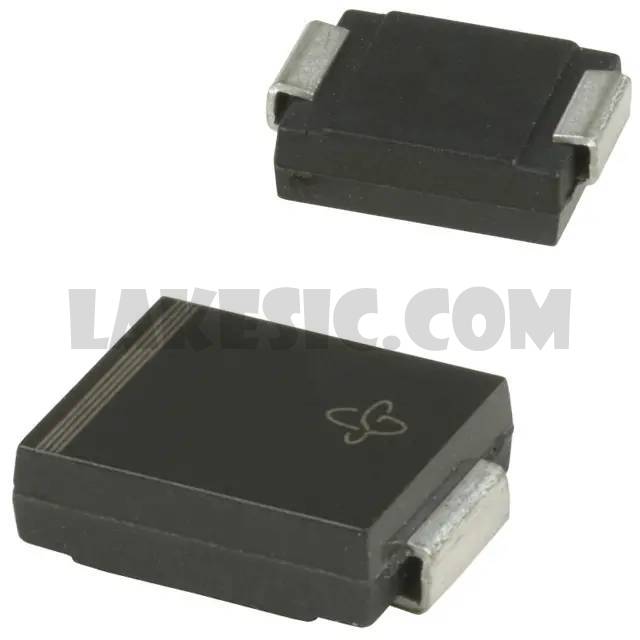

Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	RS3K
