RS614-1-02
RS614-1-02

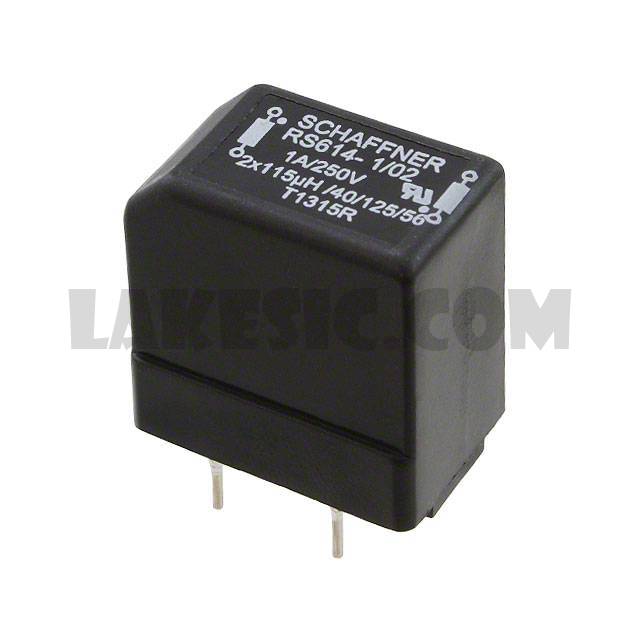

Part Number RS614-1-02 Description CMC 120UH 1A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 120µH @ 1kHz 2 Line Common Mode Choke Through Hole 1A (Typ) DCR 200mOhm (Typ)
To learn about the specification of RS614-1-02, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RS614-1-02 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RS614-1-02.
We are offering RS614-1-02 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RS614-1-02 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RS Series Datasheet Standard Package 500 Manufacturer Schaffner EMC Inc. Series RS Packaging Tray Part Status Active Filter Type Signal Line Number of Lines 2 Inductance @ Frequency 120µH @ 1kHz Current Rating (Max) 1A (Typ) DC Resistance (DCR) (Max) 200mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals UR, VDE Features - Mounting Type Through Hole Size / Dimension 0.906" L x 0.610" W (23.00mm x 15.50mm) Height (Max) 0.984" (25.00mm) Package / Case Vertical, 4 PC Pin
