Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RS8 Series
Standard Package	200
Manufacturer	Nichicon
Series	FPCAP, RS8
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	820µF
Tolerance	±20%
Voltage - Rated	2.5V
ESR (Equivalent Series Resistance)	7mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	560mA @ 120Hz
Ripple Current @ High Frequency	5.6A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.354" (9.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

RS80G561MDN1JT	Nichicon, 560µF 4V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RS8	View
RS80E821MDNASQJT	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 5000 Hrs @ 105°C, FPCAP, RS8	View
RS80J561MDNASQJT	Nichicon, 560µF 6.3V Aluminum Polymer Capacitor Radial, Can 8mOhm 5000 Hrs @ 105°C, FPCAP, RS8	View
RS80E561MDN1JT	Nichicon, 560µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RS8	View
RS80J331MDN1JT	Nichicon, 330µF 6.3V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, FPCAP, RS8	View
RS80E561MDNASQJT	Nichicon, 560µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 5000 Hrs @ 105°C, FPCAP, RS8	View
RS80J561MDNASQJT	Nichicon, 560µF 6.3V Aluminum Polymer Capacitor Radial, Can 8mOhm 5000 Hrs @ 105°C, FPCAP, RS8	View
RS80E471MDN1JT	Nichicon, 470µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RS8	View
RS81C101MDN1	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 14mOhm 2000 Hrs @ 105°C, FPCAP, RS8	View
RS81C101MDN1JT	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 14mOhm 2000 Hrs @ 105°C, FPCAP, RS8	View
RS80J471MDN1JT	Nichicon, 470µF 6.3V Aluminum Polymer Capacitor Radial, Can 8mOhm 2000 Hrs @ 105°C, FPCAP, RS8	View
RS80E331MDN1JT	Nichicon, 330µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, FPCAP, RS8	View

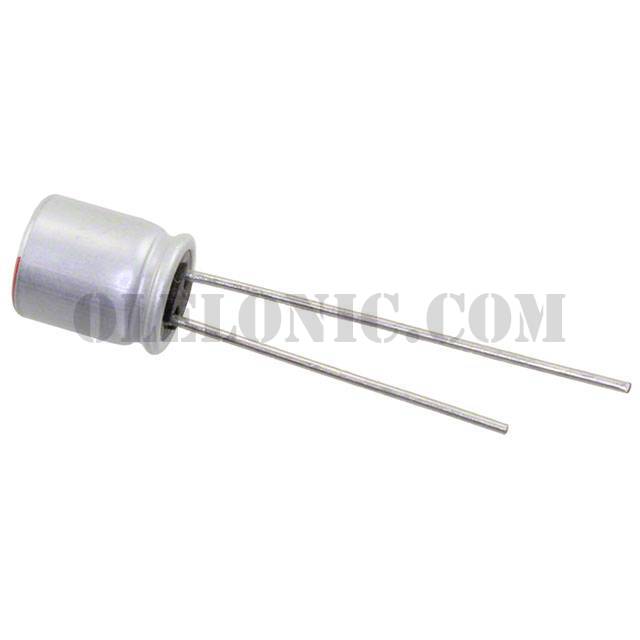

RS80E821MDNASQ

Part NumberRS80E821MDNASQ
