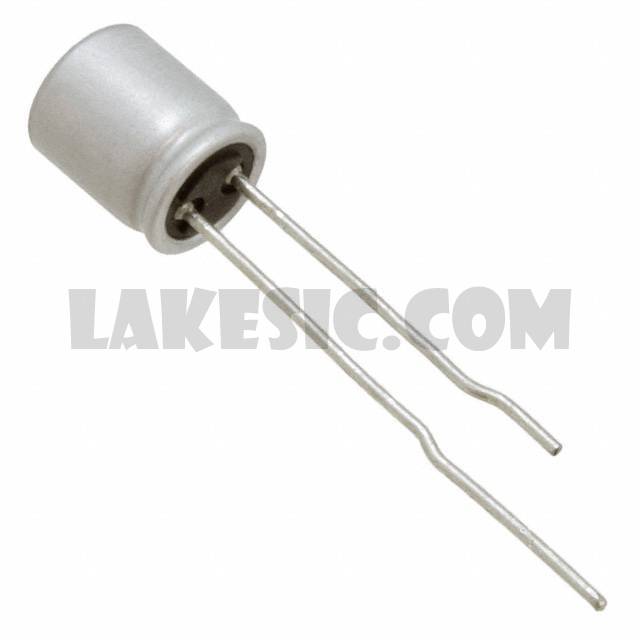

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	RS8 Series
Standard Package	200
Manufacturer	Nichicon
Series	FPCAP, RS8
Packaging	Bulk
Part Status	Active
Type	Polymer
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	7.2V
ESR (Equivalent Series Resistance)	8mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	470mA @ 120Hz
Ripple Current @ High Frequency	4.7A @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.354" (9.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
