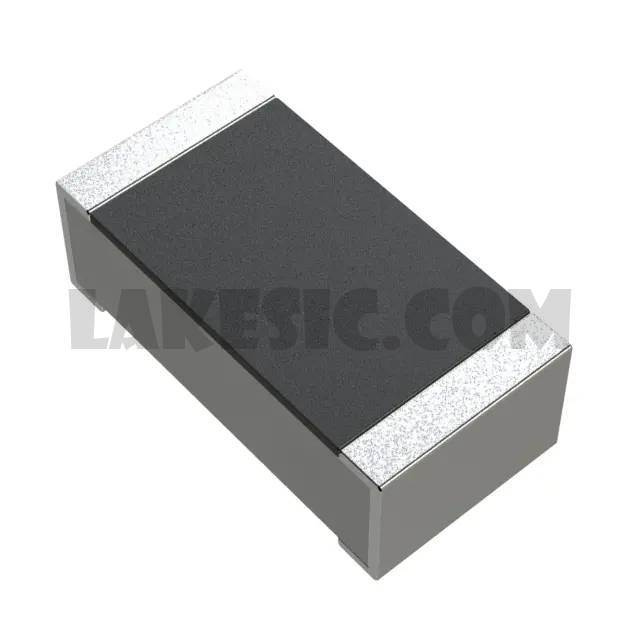

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	RT Series Datasheet
Standard Package	10000
Manufacturer	Yageo
Series	RT
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	8.06 kOhms
Tolerance	±0.1%
Power (Watts)	0.05W, 1/20W
Composition	Thin Film
Features	-
Temperature Coefficient	±50ppm/°C
Operating Temperature	-55°C ~ 125°C
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201
Size / Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)	0.010" (0.26mm)
Number of Terminations	2
Failure Rate	-

RT0805BRD0722K6L	Yageo, 22.6 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thin Film, RT	View
RT0402BRE0721KL	Yageo, 21 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film, RT	View
RT0603DRD075K9L	Yageo, 5.9 kOhms ±0.5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View
RT0603FRE0715KL	Yageo, 15 kOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View
RT0603BRD0756KL	Yageo, 56 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View
RT0805BRE0714K3L	Yageo, 14.3 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thin Film, RT	View
RT0805BRD07120KL	Yageo, 120 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thin Film, RT	View
RT0603DRE0717K8L	Yageo, 17.8 kOhms ±0.5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View
RT0805BRD0756KL	Yageo, 56 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thin Film, RT	View
RT0402FRE0715KL	Yageo, 15 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film, RT	View
RT0402BRD0724KL	Yageo, 24 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film, RT	View
RT0603DRE0768R1L	Yageo, 68.1 Ohms ±0.5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thin Film, RT	View

RT0201BRE078K06L

Part NumberRT0201BRE078K06L
