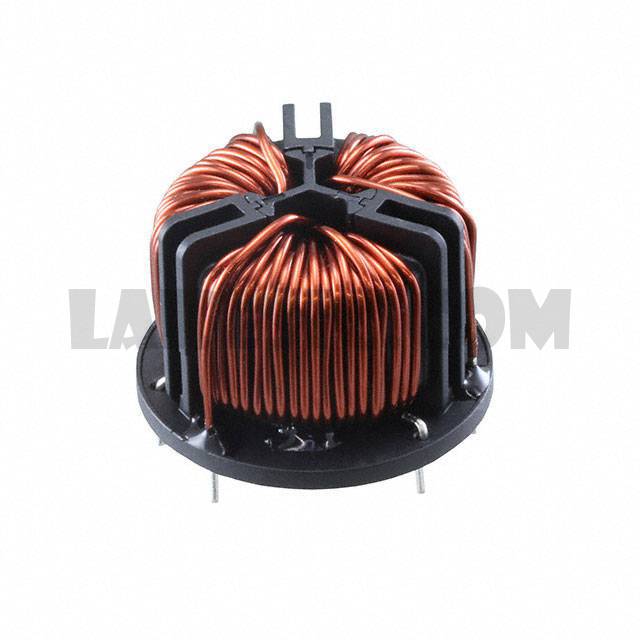

RT8132-16-3M0

RT8132-16-3M0

Part NumberRT8132-16-3M0

ManufacturerSchaffner EMC Inc.

DescriptionCOMMON MODE CHOKE 3MH 16A 3LN TH

DatasheetRT Series Datasheet

Package / CaseHorizontal, 6 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3mH @ 100kHz 3 Line Common Mode Choke Through Hole 16A DCR 8mOhm (Typ)

To learn about the specification of RT8132-16-3M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RT8132-16-3M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RT8132-16-3M0.
We are offering RT8132-16-3M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RT8132-16-3M0 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	RT Series Datasheet
Standard Package	48
Manufacturer	Schaffner EMC Inc.
Series	RT
Part Status	Active
Filter Type	Power Line
Number of Lines	3
Inductance @ Frequency	3mH @ 100kHz
Current Rating (Max)	16A
DC Resistance (DCR) (Max)	8mOhm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	600V
Operating Temperature	-40°C ~ 100°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	2.244" Dia (57.00mm)
Height (Max)	1.457" (37.00mm)
Package / Case	Horizontal, 6 PC Pin
