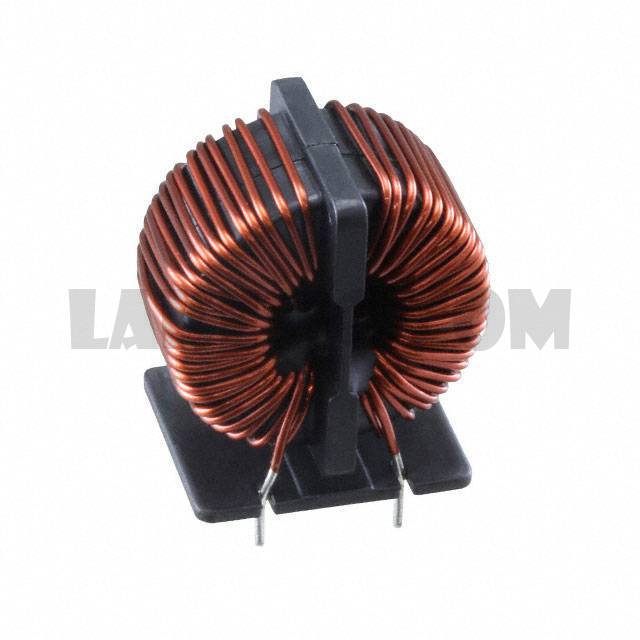

RT8522-8-8M0

RT8522-8-8M0

Part NumberRT8522-8-8M0

ManufacturerSchaffner EMC Inc.

DescriptionCOMMON MODE CHOKE 8MH 8A 2LN TH

DatasheetRT Series Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description8mH @ 100kHz 2 Line Common Mode Choke Through Hole 8A DCR 21mOhm (Typ)

To learn about the specification of RT8522-8-8M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RT8522-8-8M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RT8522-8-8M0.
We are offering RT8522-8-8M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RT8522-8-8M0 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	RT Series Datasheet
Standard Package	100
Manufacturer	Schaffner EMC Inc.
Series	RT
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	8mH @ 100kHz
Current Rating (Max)	8A
DC Resistance (DCR) (Max)	21mOhm (Typ)
Voltage Rating - DC	425V
Voltage Rating - AC	300V
Operating Temperature	-40°C ~ 100°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.693" L x 1.260" W (43.00mm x 32.00mm)
Height (Max)	1.732" (44.00mm)
Package / Case	Vertical, 4 PC Pin
