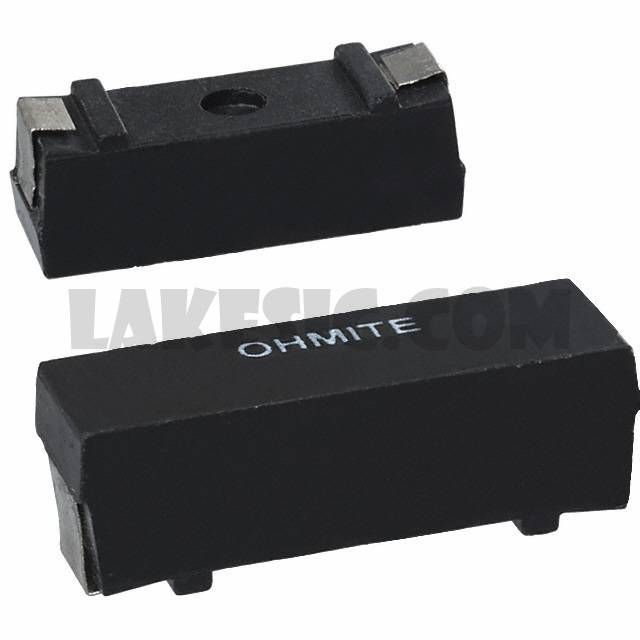

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	Surface Mount Power
Standard Package	100
Manufacturer	Ohmite
Series	RW
Packaging	Bulk
Part Status	Active
Resistance	10 mOhms
Tolerance	±5%
Power (Watts)	3.5W
Composition	Wirewound
Features	Current Sense
Temperature Coefficient	-
Operating Temperature	-55°C ~ 150°C
Package / Case	8127 J-Lead
Supplier Device Package	SMD J-Lead, Recessed
Size / Dimension	0.811" L x 0.273" W (20.60mm x 6.93mm)
Height - Seated (Max)	0.278" (7.06mm)
Number of Terminations	2
Failure Rate	-

RW1S0BAR300JE	Ohmite, 300 mOhms ±5% 1W Chip Resistor 2512 J-Lead Current Sense Wirewound, RW	View
RW1S0BAR200JE	Ohmite, 200 mOhms ±5% 1W Chip Resistor 2512 J-Lead Current Sense Wirewound, RW	View
RW2S0DA68R0JE	Ohmite, 68 Ohms ±5% 2W Chip Resistor 4524 J-Lead Current Sense Wirewound, RW	View
RW2S0DA10R0JE	Ohmite, 10 Ohms ±5% 2W Chip Resistor 4524 J-Lead Current Sense Wirewound, RW	View
RW0S6BBR020FET	Ohmite, 20 mOhms ±1% 0.6W Chip Resistor 2010 (5025 Metric) Current Sense Wirewound, RW	View
RW1S0BAR027JE	Ohmite, 27 mOhms ±5% 1W Chip Resistor 2512 J-Lead Current Sense Wirewound, RW	View
RW1S0BAR075JE	Ohmite, 75 mOhms ±5% 1W Chip Resistor 2512 J-Lead Current Sense Wirewound, RW	View
RW2S0DA24R0JE	Ohmite, 24 Ohms ±5% 2W Chip Resistor 4524 J-Lead Current Sense Wirewound, RW	View
RW3R0DBR005JE	Ohmite, 5 mOhms ±5% 3W Chip Resistor 6327 J-Lead Current Sense Wirewound, RW	View
RW0S6BB10R0FET	Ohmite, 10 Ohms ±1% 0.6W Chip Resistor 2010 (5025 Metric) Current Sense Wirewound, RW	View
RW3R5EAR200JE	Ohmite, 200 mOhms ±5% 3.5W Chip Resistor 8127 J-Lead Current Sense Wirewound, RW	View
RW2S0CBR200JE	Ohmite, 200 mOhms ±5% 2W Chip Resistor 4122 J-Lead Current Sense Wirewound, RW	View

RW3R5EAR010JE

Part NumberRW3R5EAR010JE
