S14100039
S14100039

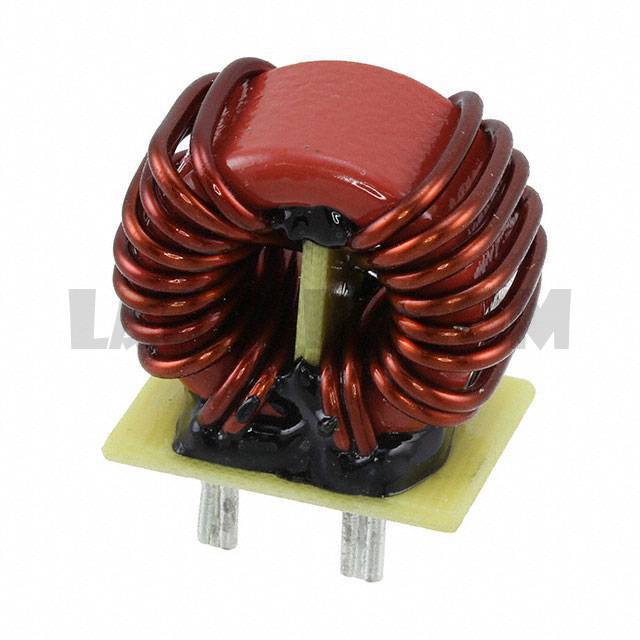

Part Number S14100039 Description CMC 285UH 25A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 285µH @ 10kHz 2 Line Common Mode Choke Through Hole 25A DCR 1.6mOhm
To learn about the specification of S14100039, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S14100039 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S14100039.
We are offering S14100039 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
S14100039 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet S14100039 Spec Sheet Standard Package 20 Manufacturer Wurth Electronics Inc. Series WE-CMB Packaging Tray Part Status Active Filter Type - Number of Lines 2 Inductance @ Frequency 285µH @ 10kHz Current Rating (Max) 25A DC Resistance (DCR) (Max) 1.6mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.142" Dia x 0.787" W (29.00mm x 20.00mm) Height (Max) 1.142" (29.00mm) Package / Case Vertical, 4 PC Pin
S14100039 - Related ProductsMore >>
7448262510 Wurth Electronics Inc., 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 25A DCR 4.5mOhm, WE-CMB
View
744834101 Wurth Electronics Inc., 1mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 12.5mOhm, WE-CMBH
View
744841330 Wurth Electronics Inc., 30µH @ 10kHz 2 Line Common Mode Choke Through Hole 3A DCR 26mOhm, WE-CMB
View
744841247 Wurth Electronics Inc., 47µH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 40mOhm, WE-CMB
View
744834405 Wurth Electronics Inc., 5mH @ 10kHz 2 Line Common Mode Choke Through Hole 4A DCR 50mOhm, WE-CMBH
View
744823333 Wurth Electronics Inc., 3.3mH @ 10kHz 2 Line Common Mode Choke Through Hole 2.5A DCR 60mOhm, WE-CMB
View
7448225007 Wurth Electronics Inc., 700µH @ 100kHz 2 Line Common Mode Choke Through Hole 5A DCR 15mOhm, WE-CMB HC
View
7448258022 Wurth Electronics Inc., 2.2mH @ 10kHz 2 Line Common Mode Choke Through Hole 8A DCR 14mOhm, WE-CMB
View
744825510 Wurth Electronics Inc., 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 5A DCR 55mOhm, WE-CMB
View
7448229004 Wurth Electronics Inc., 350µH @ 100kHz 2 Line Common Mode Choke Through Hole 8.5A DCR 7mOhm, WE-CMB HC
View
74482210002 Wurth Electronics Inc., 175µH @ 100kHz 2 Line Common Mode Choke Through Hole 10A DCR 4mOhm, WE-CMB HC
View
744824310 Wurth Electronics Inc., 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 3A DCR 105mOhm, WE-CMB
View
