S1AFM-M3/6A

S1AFM-M3/6A

Part NumberS1AFM-M3/6A

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 1KV 1A DO221AC

DatasheetS1AF(G,J,K,M)

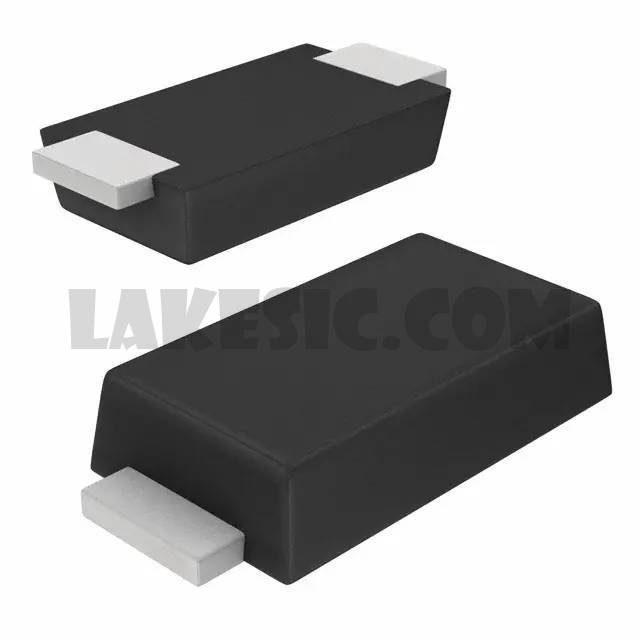

Package / CaseDO-221AC, SMA Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1000V 1A Surface Mount DO-221AC (SlimSMA)

To learn about the specification of S1AFM-M3/6A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S1AFM-M3/6A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S1AFM-M3/6A.
We are offering S1AFM-M3/6A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S1AFM-M3/6A - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S1AF(G,J,K,M)
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1.47µs
Current - Reverse Leakage @ Vr	5µA @ 1000V
Capacitance @ Vr, F	7.9pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	DO-221AC (SlimSMA)
Operating Temperature - Junction	-55°C ~ 150°C
