Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S1GM - S1JM
Standard Package	3000
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	780ns
Current - Reverse Leakage @ Vr	1µA @ 600V
Capacitance @ Vr, F	5pF @ 4V, 1MHz
Mounting Type	Surface Mount

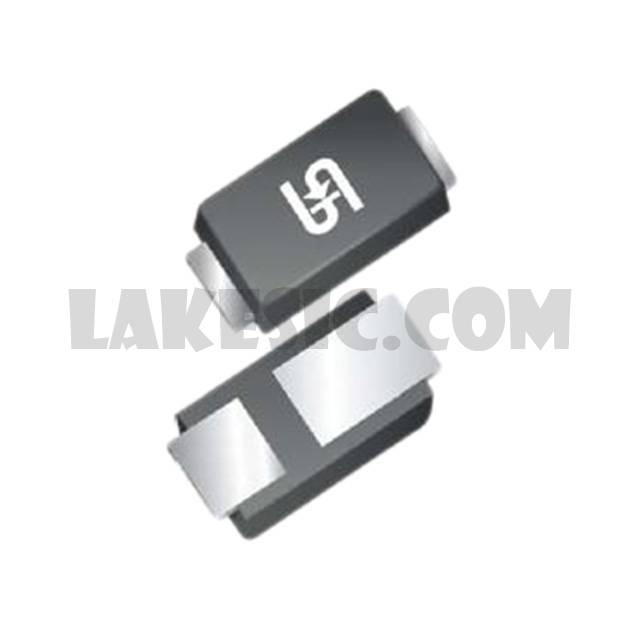

Package / Case	2-SMD, Flat Lead
Supplier Device Package	Micro SMA
Operating Temperature - Junction	-55°C ~ 175°C

BYM12-400-E3/96	Vishay Semiconductor Diodes Division, Diode Standard 400V 1A Surface Mount DO-213AB, SUPERECTIFIER®	View
CMR1F-06M TR13	Central Semiconductor Corp, Diode Standard 600V 1A Surface Mount SMA,	View
RSFKL RVG	Taiwan Semiconductor Corporation, Diode Standard 800V 500mA Surface Mount Sub SMA,	View
S1GL R3G	Taiwan Semiconductor Corporation, Diode Standard 400V 1A Surface Mount Sub SMA,	View
RFN5BGE3STL	Rohm Semiconductor, Diode Standard 350V 5A Surface Mount TO-252GE,	View
GP30G-E3/54	Vishay Semiconductor Diodes Division, Diode Standard 400V 3A Through Hole DO-201AD, SUPERECTIFIER®	View
S4M V7G	Taiwan Semiconductor Corporation, Diode Standard 1000V 4A Surface Mount DO-214AB (SMC),	View
SF28GTA	SMC Diode Solutions, Diode Standard 600V 2A Through Hole DO-15,	View
STTH1R06UFY	STMicroelectronics, Diode Standard 600V 1A Surface Mount SMBflat, Automotive, AEC-Q101	View
1N4007TA	SMC Diode Solutions, Diode Standard 1000V 1A Through Hole DO-41,	View
S5M R7G	Taiwan Semiconductor Corporation, Diode Standard 1000V 5A Surface Mount DO-214AB (SMC),	View
UFM13PL-TP	Micro Commercial Co, Diode Standard 200V 1A Surface Mount SOD-123FL,	View

S1JM RSG

Part NumberS1JM RSG
