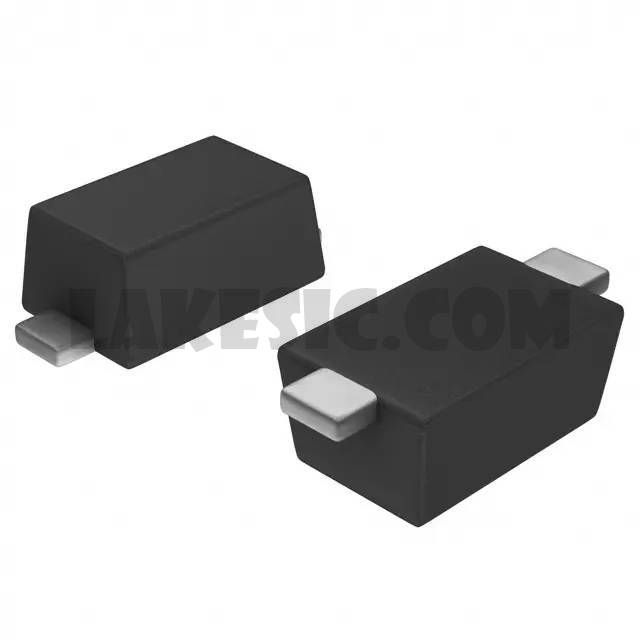

S1MSWF-7

S1MSWF-7

Part NumberS1MSWF-7

ManufacturerDiodes Incorporated

DescriptionDIODE GEN PURP 1KV 1A SOD123F

DatasheetS1MSWF

Package / CaseSOD-123F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1000V 1A Surface Mount SOD-123F

To learn about the specification of S1MSWF-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S1MSWF-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S1MSWF-7.
We are offering S1MSWF-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S1MSWF-7 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S1MSWF
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1µs
Current - Reverse Leakage @ Vr	10µA @ 1000V
Capacitance @ Vr, F	6pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123F
Supplier Device Package	SOD-123F
Operating Temperature - Junction	-55°C ~ 150°C
