S2B

S2B

Part NumberS2B

ManufacturerON Semiconductor

DescriptionDIODE GEN PURP 100V 2A DO214AA

DatasheetS2A - S2M

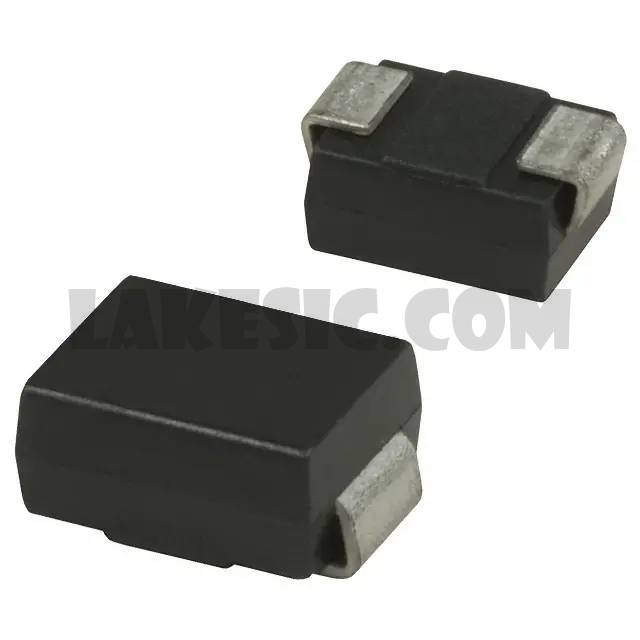

Package / CaseDO-214AA, SMB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 100V 2A Surface Mount SMB (DO-214AA)

To learn about the specification of S2B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S2B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S2B.
We are offering S2B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S2B - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S2A - S2M
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	1.15V @ 2A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	1µA @ 100V
Capacitance @ Vr, F	30pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB (DO-214AA)
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	S2B
