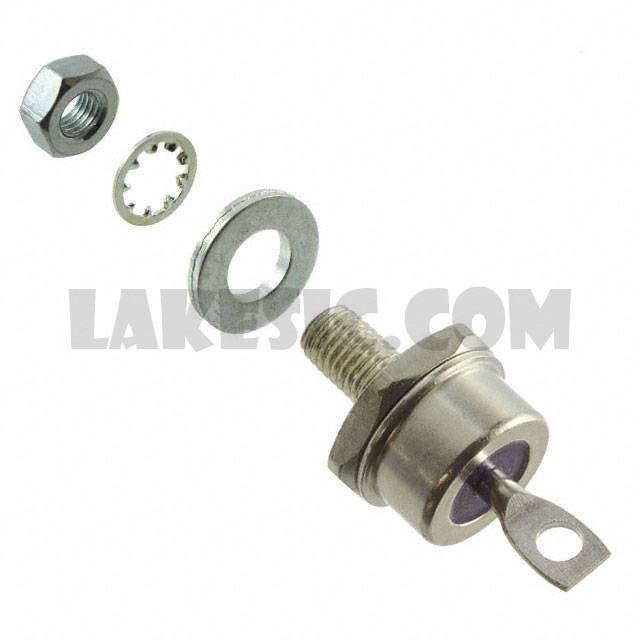

S40Q

S40Q

Part NumberS40Q

ManufacturerGeneSiC Semiconductor

DescriptionDIODE GEN PURP 1.2KV 40A DO5

DatasheetS40K thru S40QR

Package / CaseDO-203AB, DO-5, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1200V 40A Chassis, Stud Mount DO-5

To learn about the specification of S40Q, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add S40Q with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of S40Q.
We are offering S40Q for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

S40Q - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S40K thru S40QR
Standard Package	100
Manufacturer	GeneSiC Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	40A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 40A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 100V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-5
Operating Temperature - Junction	-65°C ~ 190°C
