Categories	Discrete Semiconductor Products / Thyristors - SCRs
Datasheet	SzX8zSz Series
Standard Package	1
Manufacturer	Littelfuse Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Off State	600V
Voltage - Gate Trigger (Vgt) (Max)	800mV
Current - Gate Trigger (Igt) (Max)	200µA
Voltage - On State (Vtm) (Max)	1.7V
Current - On State (It (AV)) (Max)	510mA
Current - On State (It (RMS)) (Max)	800mA
Current - Hold (Ih) (Max)	5mA
Current - Off State (Max)	3µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	8A, 10A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount

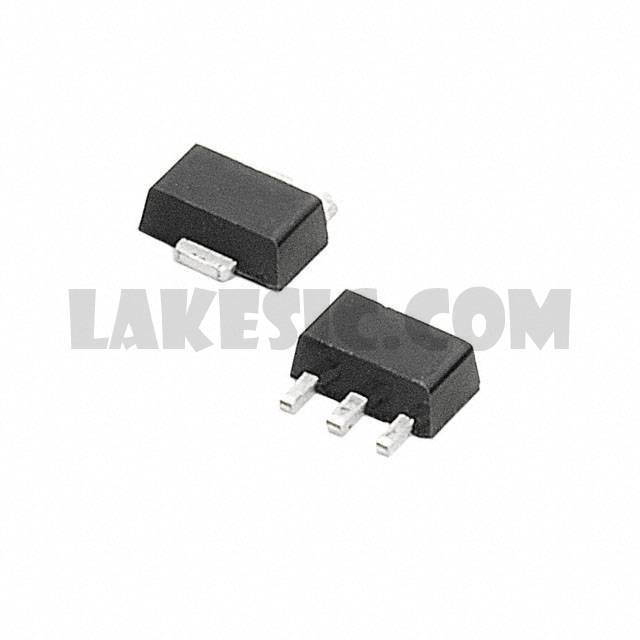

Package / Case	TO-243AA
Supplier Device Package	SOT-89
