Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	S8KC_MC
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	8A
Voltage - Forward (Vf) (Max) @ If	985mV @ 8A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 1000V
Capacitance @ Vr, F	40pF @ 4V, 1MHz
Mounting Type	Surface Mount

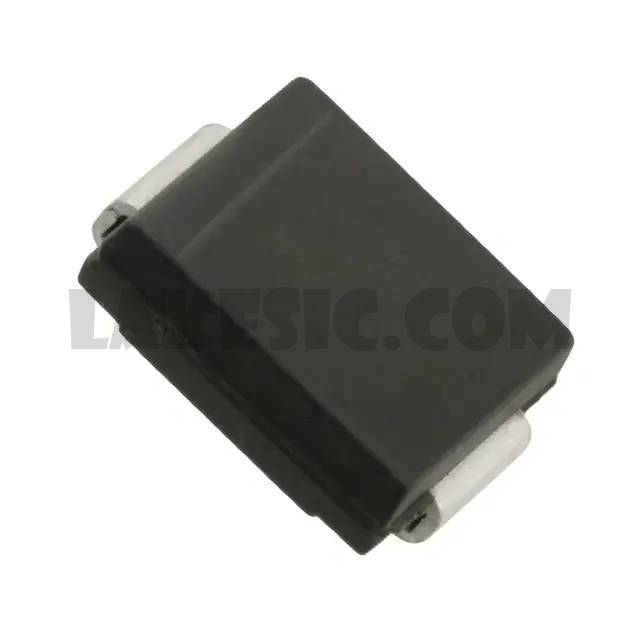

Package / Case	DO-214AB, SMC
Supplier Device Package	SMC
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	S8MC
