Categories	Capacitors / Ceramic Capacitors
Datasheet	SA Series, SpinGuard
Standard Package	5000
Manufacturer	AVX Corporation
Series	SpinGuard® SA
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	0.22µF
Tolerance	-20%, +80%
Voltage - Rated	50V
Temperature Coefficient	Z5U
Operating Temperature	10°C ~ 85°C
Features	-
Ratings	-
Applications	General Purpose
Mounting Type	Through Hole
Package / Case	Axial
Size / Dimension	0.120" Dia x 0.170" L (3.05mm x 4.32mm)
Height - Seated (Max)	-
Thickness (Max)	-
Lead Spacing	-
Lead Style	Straight

SA101C102KAR	AVX Corporation, 1000pF ±10% 100V Ceramic Capacitor X7R Axial, SpinGuard® SA	View
SA102A330JAR	AVX Corporation, 33pF ±5% 200V Ceramic Capacitor C0G, NP0 Axial, SpinGuard® SA	View
SA101A102JAR	AVX Corporation, 1000pF ±5% 100V Ceramic Capacitor C0G, NP0 Axial, SpinGuard® SA	View
SA305E474MAR	AVX Corporation, 0.47µF ±20% 50V Ceramic Capacitor Z5U Axial, SpinGuard® SA	View
SA102A101JAR	AVX Corporation, 100pF ±5% 200V Ceramic Capacitor C0G, NP0 Axial, SpinGuard® SA	View
SA102A101JAR	AVX Corporation, 100pF ±5% 200V Ceramic Capacitor C0G, NP0 Axial, SpinGuard® SA	View
SA115E224ZAR	AVX Corporation, 0.22µF -20%, +80% 50V Ceramic Capacitor Z5U Axial, SpinGuard® SA	View
SA101A681JAR	AVX Corporation, 680pF ±5% 100V Ceramic Capacitor C0G, NP0 Axial, SpinGuard® SA	View
SA105C103JAR	AVX Corporation, 10000pF ±5% 50V Ceramic Capacitor X7R Axial, SpinGuard® SA	View
SA301C563KAR	AVX Corporation, 0.056µF ±10% 100V Ceramic Capacitor X7R Axial, SpinGuard® SA	View
SA102A100JAR	AVX Corporation, 10pF ±5% 200V Ceramic Capacitor C0G, NP0 Axial, SpinGuard® SA	View
SA105A102JAR	AVX Corporation, 1000pF ±5% 50V Ceramic Capacitor C0G, NP0 Axial, SpinGuard® SA	View

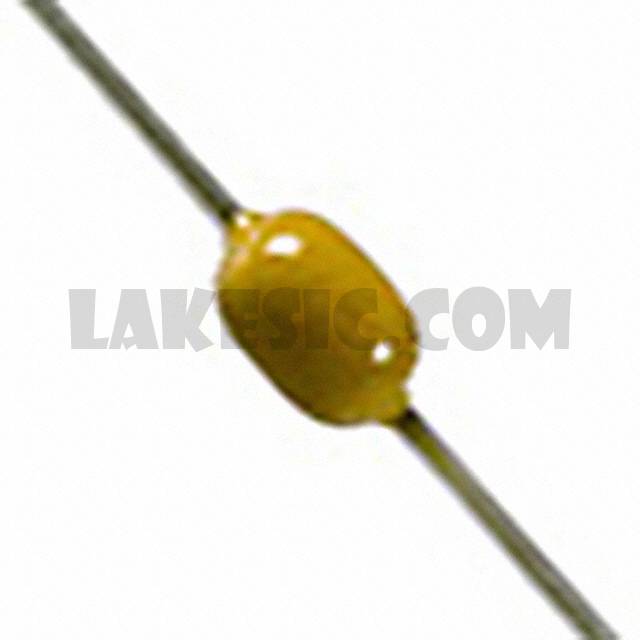

SA115E224ZAR
