Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SB2100
Standard Package	3000
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	-
Voltage - Forward (Vf) (Max) @ If	850mV @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500µA @ 100V
Capacitance @ Vr, F	140pF @ 5V, 1MHz
Mounting Type	Through Hole

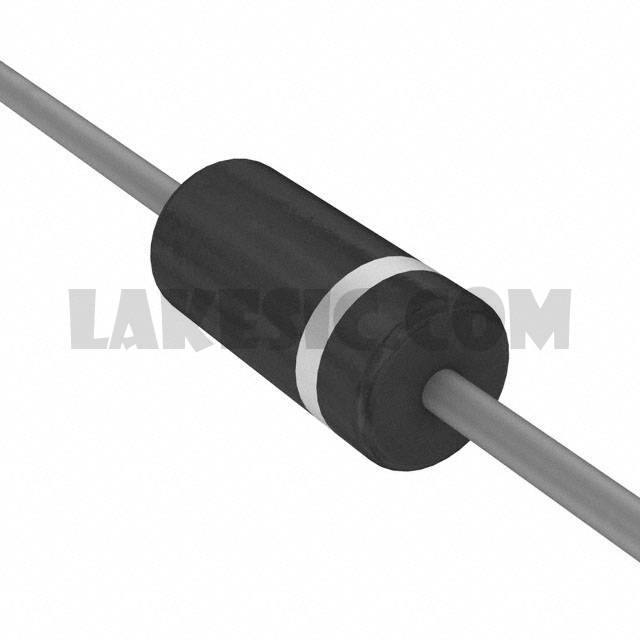

Package / Case	DO-204AC, DO-15, Axial
Supplier Device Package	DO-15
Operating Temperature - Junction	-55°C ~ 150°C
