Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SBCP Series Datasheet
Standard Package	100
Manufacturer	KEMET
Series	SBCP
Packaging	Bulk
Part Status	Active

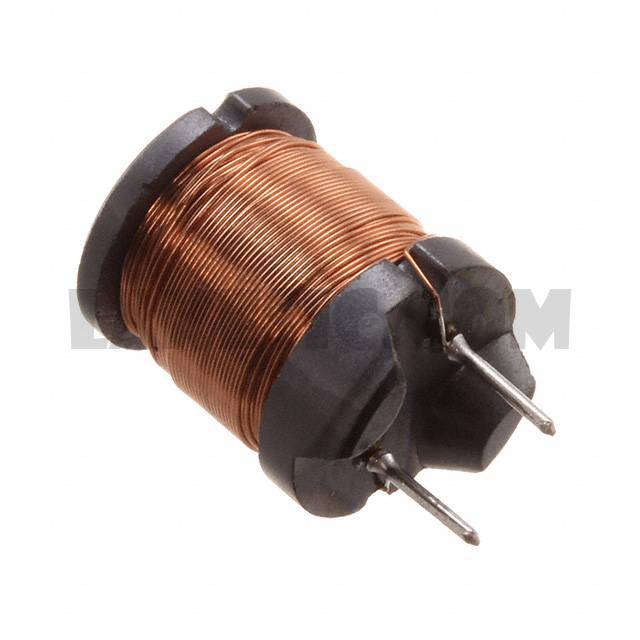

Type	Wirewound
Material - Core	Ferrite
Inductance	10mH
Tolerance	±10%
Current Rating (Amps)	170mA
Current - Saturation	310mA
Shielding	Unshielded
DC Resistance (DCR)	10.86Ohm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-20°C ~ 105°C
Inductance Frequency - Test	10kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Supplier Device Package	-
Size / Dimension	0.472" Dia (12.00mm)
Height - Seated (Max)	0.591" (15.00mm)

SBC7-222-421	KEMET, 2.2mH Unshielded Wirewound Inductor 420mA 2.18Ohm Max Radial, Vertical Cylinder, SBC	View
SBCP-80HY470H	KEMET, 47µH Unshielded Wirewound Inductor 1.9A 130mOhm Max Radial, Vertical Cylinder, SBCP	View
SBC6-221-112	KEMET, 220µH Unshielded Wirewound Inductor 1.1A 330mOhm Max Radial, Vertical Cylinder, SBC	View
SBC3-3R3-472	KEMET, 3.3µH Unshielded Wirewound Inductor 4.7A 20mOhm Max Radial, Vertical Cylinder, SBC	View
SBCP-87HY100H	KEMET, 10µH Unshielded Wirewound Inductor 2.3A 50mOhm Max Radial, Vertical Cylinder, SBCP	View
SBCP-11HY4R7H	KEMET, 4.7µH Unshielded Wirewound Inductor 4.1A 30mOhm Max Radial, Vertical Cylinder, SBCP	View
SBCP-47HY2R7B	KEMET, 2.7µH Unshielded Wirewound Inductor 2.45A 32mOhm Max Radial, Vertical Cylinder (Open), SBCP	View
SBC6-470-232	KEMET, 47µH Unshielded Wirewound Inductor 2.3A 80mOhm Max Radial, Vertical Cylinder, SBC	View
SBC1-4R7-202	KEMET, 4.7µH Unshielded Wirewound Inductor 2A 50mOhm Max Radial, Vertical Cylinder, SBC	View
SBC7-682-211	KEMET, 6.8mH Unshielded Wirewound Inductor 210mA 7Ohm Max Radial, Vertical Cylinder, SBC	View
SBCP-14HY151B	KEMET, 150µH Unshielded Wirewound Inductor 1.3A 200mOhm Max Radial, Vertical Cylinder (Open), SBCP	View
SBCP-47HY121B	KEMET, 120µH Unshielded Wirewound Inductor 450mA 657mOhm Max Radial, Vertical Cylinder (Open), SBCP	View

SBCP-14HY103B

Part NumberSBCP-14HY103B
