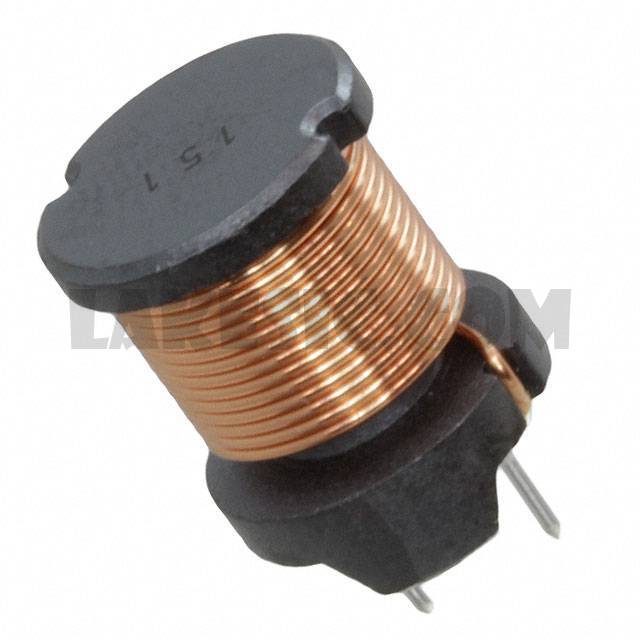

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SBCP Series Datasheet
Standard Package	100
Manufacturer	KEMET
Series	SBCP
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	150µH
Tolerance	±10%
Current Rating (Amps)	1.3A
Current - Saturation	2.7A
Shielding	Unshielded
DC Resistance (DCR)	200mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-20°C ~ 105°C
Inductance Frequency - Test	10kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Supplier Device Package	-
Size / Dimension	0.472" Dia (12.00mm)
Height - Seated (Max)	0.591" (15.00mm)

SBCP-47HY561B	KEMET, 560µH Unshielded Wirewound Inductor 210mA 3.1Ohm Max Radial, Vertical Cylinder (Open), SBCP	View
SBCP-87HY102H	KEMET, 1mH Unshielded Wirewound Inductor 250mA 2.82Ohm Max Radial, Vertical Cylinder, SBCP	View
SBC9-1R5-942	KEMET, 1.5µH Unshielded Wirewound Inductor 9.4A 10mOhm Max Radial, Vertical Cylinder, SBC	View
SBC9-101-122	KEMET, 100µH Unshielded Wirewound Inductor 1.2A 210mOhm Max Radial, Vertical Cylinder, SBC	View
SBCP-11HY331H	KEMET, 330µH Unshielded Wirewound Inductor 740mA 600mOhm Max Radial, Vertical Cylinder, SBCP	View
SBCP-80HY820H	KEMET, 82µH Unshielded Wirewound Inductor 1.3A 240mOhm Max Radial, Vertical Cylinder, SBCP	View
SBCP-80HY6R8H	KEMET, 6.8µH Unshielded Wirewound Inductor 3.3A 50mOhm Max Radial, Vertical Cylinder, SBCP	View
SBCP-11HY101H	KEMET, 100µH Unshielded Wirewound Inductor 1.3A 190mOhm Max Radial, Vertical Cylinder, SBCP	View
SBCP-47HY2R7B	KEMET, 2.7µH Unshielded Wirewound Inductor 2.45A 32mOhm Max Radial, Vertical Cylinder (Open), SBCP	View
SBCP-80HY101H	KEMET, 100µH Unshielded Wirewound Inductor 1.1A 350mOhm Max Radial, Vertical Cylinder, SBCP	View
SBCP-47HY3R3B	KEMET, 3.3µH Unshielded Wirewound Inductor 2.3A 37mOhm Max Radial, Vertical Cylinder (Open), SBCP	View
SBC1-331-341	KEMET, 330µH Unshielded Wirewound Inductor 340mA 1.9Ohm Max Radial, Vertical Cylinder, SBC	View

SBCP-14HY151B

Part NumberSBCP-14HY151B
