Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SBCP Series Datasheet
Standard Package	100
Manufacturer	KEMET
Series	SBCP
Packaging	Bulk
Part Status	Active

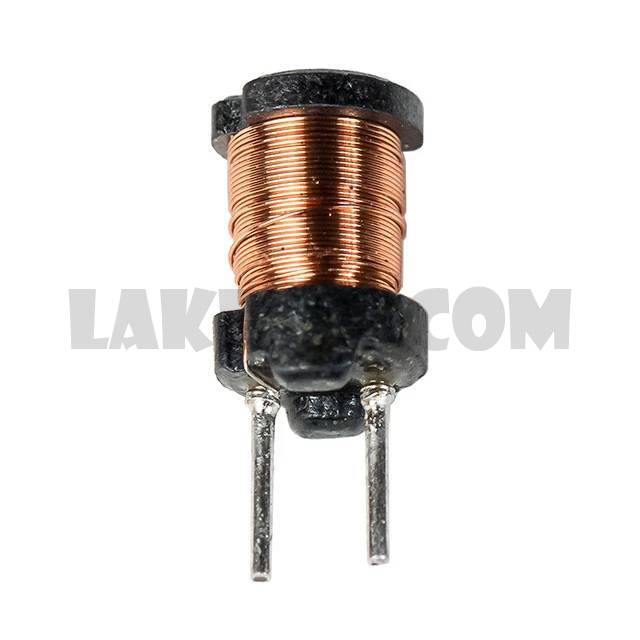

Type	Wirewound
Material - Core	Ferrite
Inductance	33µH
Tolerance	±20%
Current Rating (Amps)	2.4A
Current - Saturation	5.63A
Shielding	Unshielded
DC Resistance (DCR)	70mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-20°C ~ 105°C
Inductance Frequency - Test	10kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Supplier Device Package	-
Size / Dimension	0.472" Dia (12.00mm)
Height - Seated (Max)	0.591" (15.00mm)
