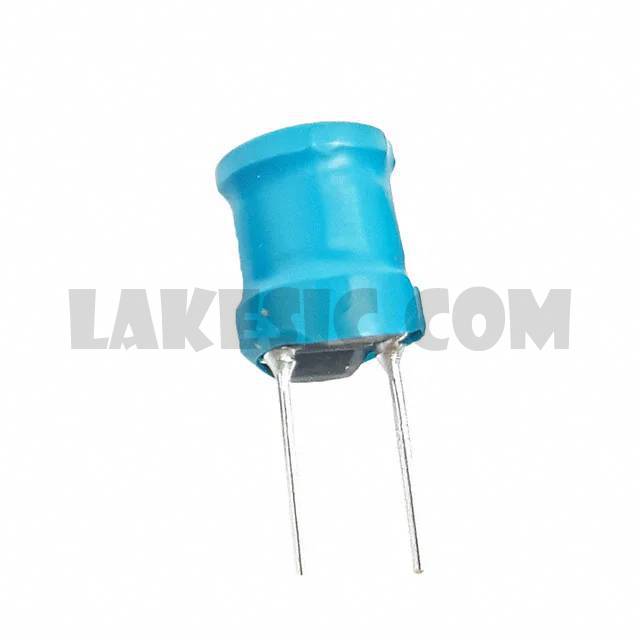

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SBCP Series Datasheet
Standard Package	500
Manufacturer	KEMET
Series	SBCP
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	470µH
Tolerance	±10%
Current Rating (Amps)	650mA
Current - Saturation	710mA
Shielding	Unshielded
DC Resistance (DCR)	950mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-20°C ~ 105°C
Inductance Frequency - Test	10kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.374" Dia (9.50mm)
Height - Seated (Max)	0.433" (11.00mm)
