Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SBR0240LPW
Standard Package	1
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101, SBR®
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	3.8ns
Current - Reverse Leakage @ Vr	10µA @ 40V
Capacitance @ Vr, F	8pF @ 5V, 1MHz
Mounting Type	Surface Mount

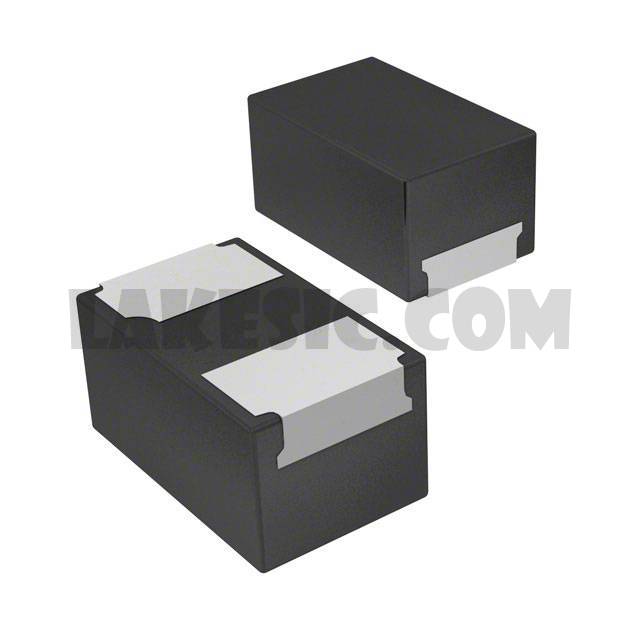

Package / Case	0402 (1006 Metric)
Supplier Device Package	X1-DFN1006-2
Operating Temperature - Junction	-65°C ~ 150°C
