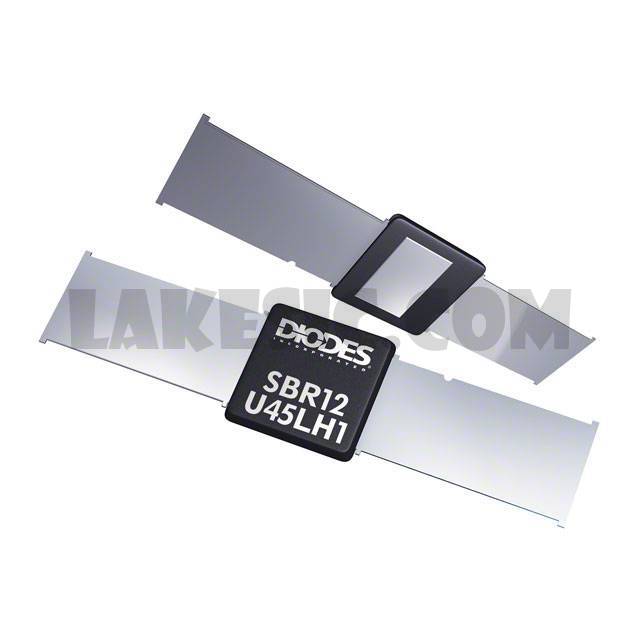

SBR12U45LH1-13

SBR12U45LH1-13

Part NumberSBR12U45LH1-13

ManufacturerDiodes Incorporated

DescriptionDIODE SBR 45V 12A POWERDI5SP

DatasheetSBR12U45LH1

Package / CasePowerDI™ 5SP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Super Barrier 45V 12A Surface Mount PowerDI5SP™

To learn about the specification of SBR12U45LH1-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SBR12U45LH1-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SBR12U45LH1-13.
We are offering SBR12U45LH1-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SBR12U45LH1-13 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SBR12U45LH1
Standard Package	1
Manufacturer	Diodes Incorporated
Series	SBR®
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Super Barrier
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	12A
Voltage - Forward (Vf) (Max) @ If	500mV @ 12A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	300µA @ 45V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	PowerDI™ 5SP
Supplier Device Package	PowerDI5SP™
Operating Temperature - Junction	-65°C ~ 150°C
