SC-02-500
SC-02-500

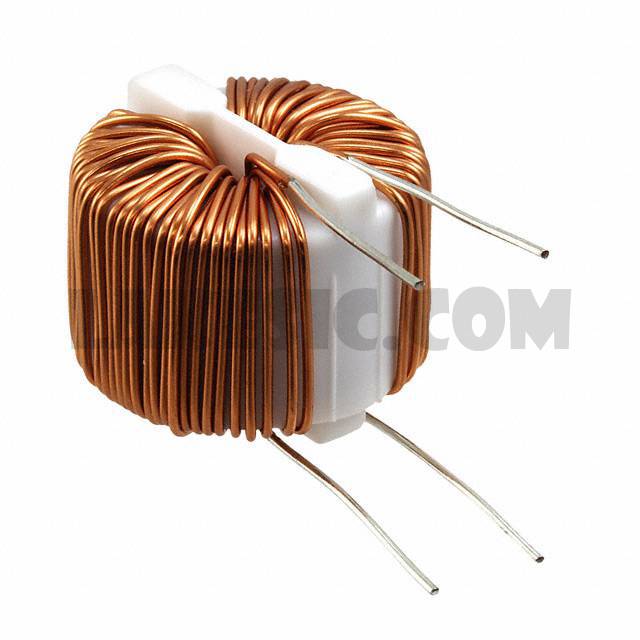

Part Number SC-02-500 Manufacturer KEMET Description COMMON MODE CHOKE 5MH 2A 2LN TH Package / Case Vertical, No Base, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 5mH @ 100kHz 2 Line Common Mode Choke Through Hole 2A DCR 100mOhm
To learn about the specification of SC-02-500, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC-02-500 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC-02-500.
We are offering SC-02-500 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SC-02-500 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet SC, Standard Type Standard Package 300 Manufacturer KEMET Series SC Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 5mH @ 100kHz Current Rating (Max) 2A DC Resistance (DCR) (Max) 100mOhm Voltage Rating - DC 250V Voltage Rating - AC 250V Operating Temperature -25°C ~ 105°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.063" Dia x 0.787" W (27.00mm x 20.00mm) Height (Max) 1.063" (27.00mm) Package / Case Vertical, No Base, 4 PC Pin
