SC-02-800
SC-02-800

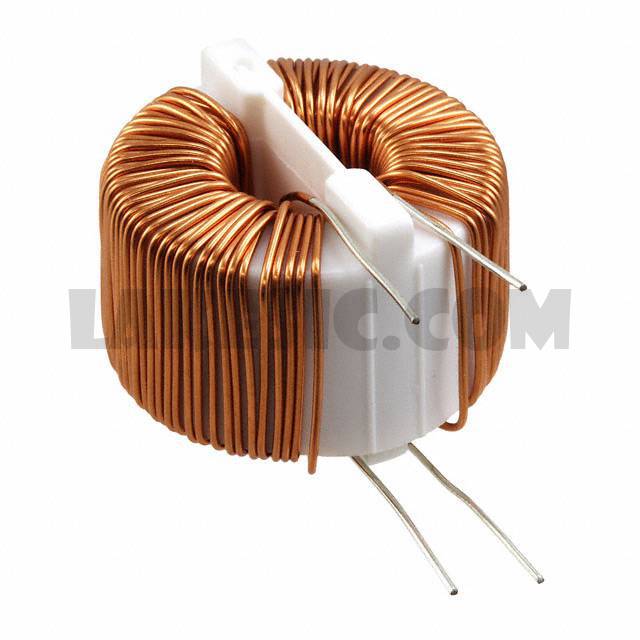

Part Number SC-02-800 Manufacturer KEMET Description COMMON MODE CHOKE 8MH 2A 2LN TH Package / Case Vertical, No Base, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 8mH @ 100kHz 2 Line Common Mode Choke Through Hole 2A DCR 150mOhm
To learn about the specification of SC-02-800, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SC-02-800 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SC-02-800.
We are offering SC-02-800 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SC-02-800 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet SC, Standard Type Standard Package 200 Manufacturer KEMET Series SC Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 8mH @ 100kHz Current Rating (Max) 2A DC Resistance (DCR) (Max) 150mOhm Voltage Rating - DC 250V Voltage Rating - AC 250V Operating Temperature -25°C ~ 105°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.339" Dia x 0.906" W (34.00mm x 23.00mm) Height (Max) 1.339" (34.00mm) Package / Case Vertical, No Base, 4 PC Pin
