Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	SC50VB80-G~ SC50VB160-G
Standard Package	25
Manufacturer	Comchip Technology
Series	-
Packaging	Tray
Part Status	Active
Diode Type	Three Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1.6kV
Current - Average Rectified (Io)	50A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 12.5A
Current - Reverse Leakage @ Vr	100µA @ 1600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal
Package / Case	5-Square, SCVB
Supplier Device Package	SCVB

VS-26MB100A	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV QC Terminal D-34,	View
VS-36MB80A	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 800V QC Terminal D-34,	View
VS-36MT20	Vishay Semiconductor Diodes Division, Bridge Rectifier Three Phase Standard 200V QC Terminal D-63,	View
GBPC2508	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V QC Terminal GBPC,	View
GBPC2506	ON Semiconductor, Bridge Rectifier Single Phase Standard 600V QC Terminal GBPC,	View
GBPC3504	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V QC Terminal GBPC,	View
VS-26MB40A	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 400V QC Terminal D-34,	View
GBPC5008-G	Comchip Technology, Bridge Rectifier Single Phase Standard 800V QC Terminal GBPC,	View
VUO36-12NO8	IXYS, Bridge Rectifier Three Phase Standard 1.2kV QC Terminal FO-B,	View
VS-26MB60A	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 600V QC Terminal D-34,	View
VUO25-12NO8	IXYS, Bridge Rectifier Three Phase Standard 1.2kV QC Terminal PWS-E1,	View
GBPC35005-E4/51	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V QC Terminal GBPC,	View

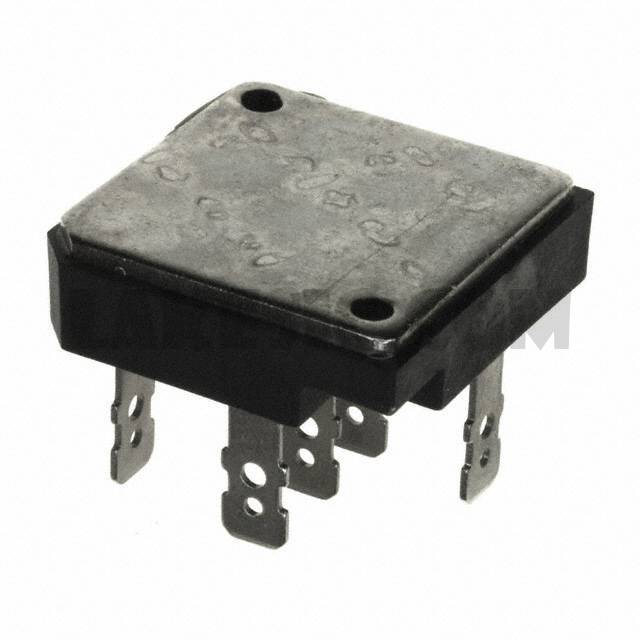

SC50VB160-G

Part NumberSC50VB160-G
