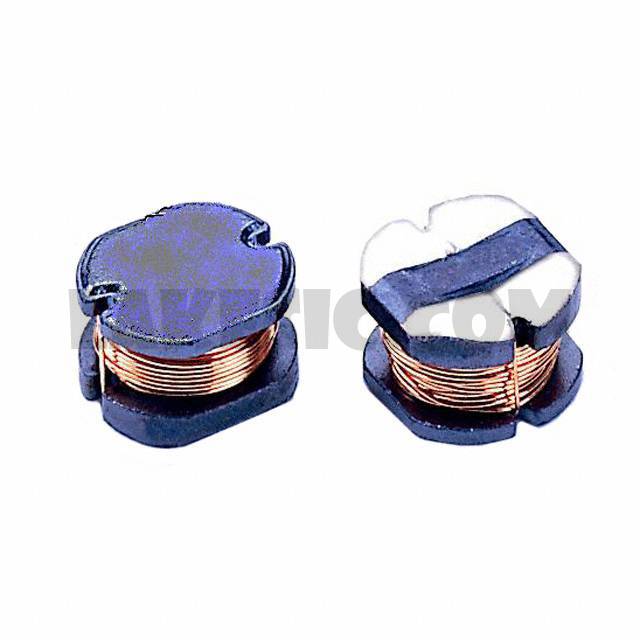

SC75-470


SC75-470

Part NumberSC75-470

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SC75-470 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerSignal Transformer
SeriesSC75
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - Core-
Inductance47µH
Tolerance±20%
Current Rating (Amps)1.47A
Current - Saturation1.1A
ShieldingUnshielded
DC Resistance (DCR)180mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test2.52MHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.319" L x 0.287" W (8.10mm x 7.30mm)
Height - Seated (Max)0.209" (5.30mm)
