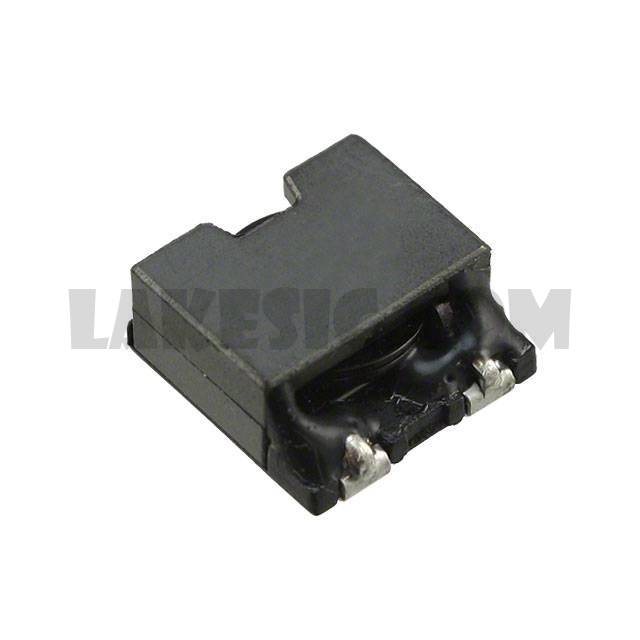

SCEP125H-1R0

Part NumberSCEP125H-1R0

ManufacturerSignal Transformer

DescriptionFIXED IND 1UH 20A 2.5 MOHM SMD

DatasheetSCEP125H Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Shielded Wirewound Inductor 20A 2.5mOhm Max Nonstandard

To learn about the specification of SCEP125H-1R0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SCEP125H-1R0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SCEP125H-1R0.
We are offering SCEP125H-1R0 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SCEP125H-1R0 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

SCEP125H Series

Standard Package

500

Manufacturer

Signal Transformer

Series

SCEP125H

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

1µH

Tolerance

±20%

Current Rating (Amps)

20A

Current - Saturation

20A

Shielding

Shielded

DC Resistance (DCR)

2.5mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.508" L x 0.508" W (12.90mm x 12.90mm)

Height - Seated (Max)

0.228" (5.80mm)
