Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SCIHP0750 Series Datasheet
Standard Package	1
Manufacturer	Signal Transformer
Series	SCIHP0750
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	3.3µH
Tolerance	±20%
Current Rating (Amps)	8A
Current - Saturation	9.5A
Shielding	Unshielded
DC Resistance (DCR)	29mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	200kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.287" L x 0.268" W (7.30mm x 6.80mm)
Height - Seated (Max)	0.197" (5.00mm)

SCIHP0750-3R3	Signal Transformer, 3.3µH Unshielded Wirewound Inductor 8A 29mOhm Max Nonstandard, SCIHP0750	View
SCIHP0750-2R2	Signal Transformer, 2.2µH Shielded Wirewound Inductor 11A 15mOhm Max Nonstandard, SCIHP0750	View
SC10002430	Skyworks Solutions Inc., 100pF Silicon Capacitor 100V Nonstandard Chip, SC	View
SC00821518	Skyworks Solutions Inc., 8.2pF Silicon Capacitor 100V Nonstandard Chip, SC	View
502R30W102KV3E-****-SC	Johanson Dielectrics Inc., 1000pF ±10% 250V Ceramic Capacitor X7R 2211 (5728 Metric), SC	View
SCIH1040HC-1R5M	Signal Transformer, 1.5µH Shielded Wirewound Inductor 14A 4.2mOhm Max Nonstandard, SCIH1040HC	View
502R29N101KV3E-****-SC	Johanson Dielectrics Inc., 100pF ±10% 250V Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SC	View
302R29N470JV3E-****-SC	Johanson Dielectrics Inc., 47pF ±5% 250V Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SC	View
SC00560912	Skyworks Solutions Inc., 5.6pF Silicon Capacitor 100V Nonstandard Chip, SC	View
SC-05-200	KEMET, 2mH @ 100kHz 2 Line Common Mode Choke Through Hole 5A DCR 70mOhm, SC	View
SCIHP0530-3R3	Signal Transformer, 3.3µH Shielded Wirewound Inductor 5A Nonstandard, SCIHP0530	View
502R29N330JV3E-****-SC	Johanson Dielectrics Inc., 33pF ±5% 250V Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SC	View

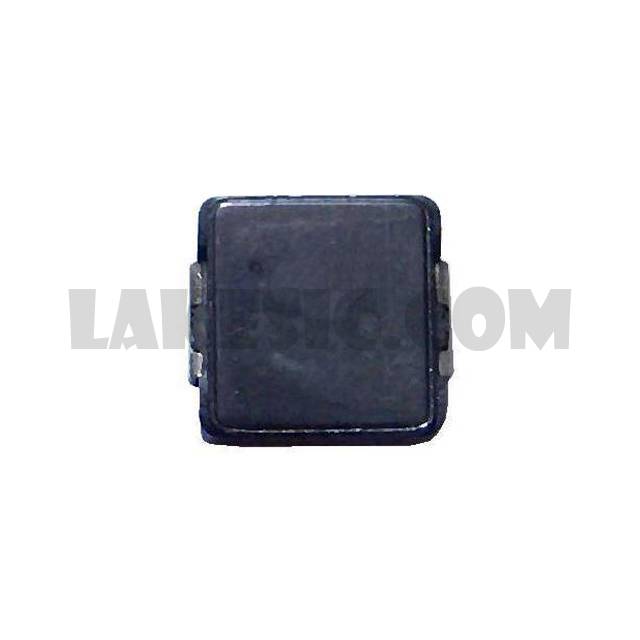

SCIHP0750-3R3
