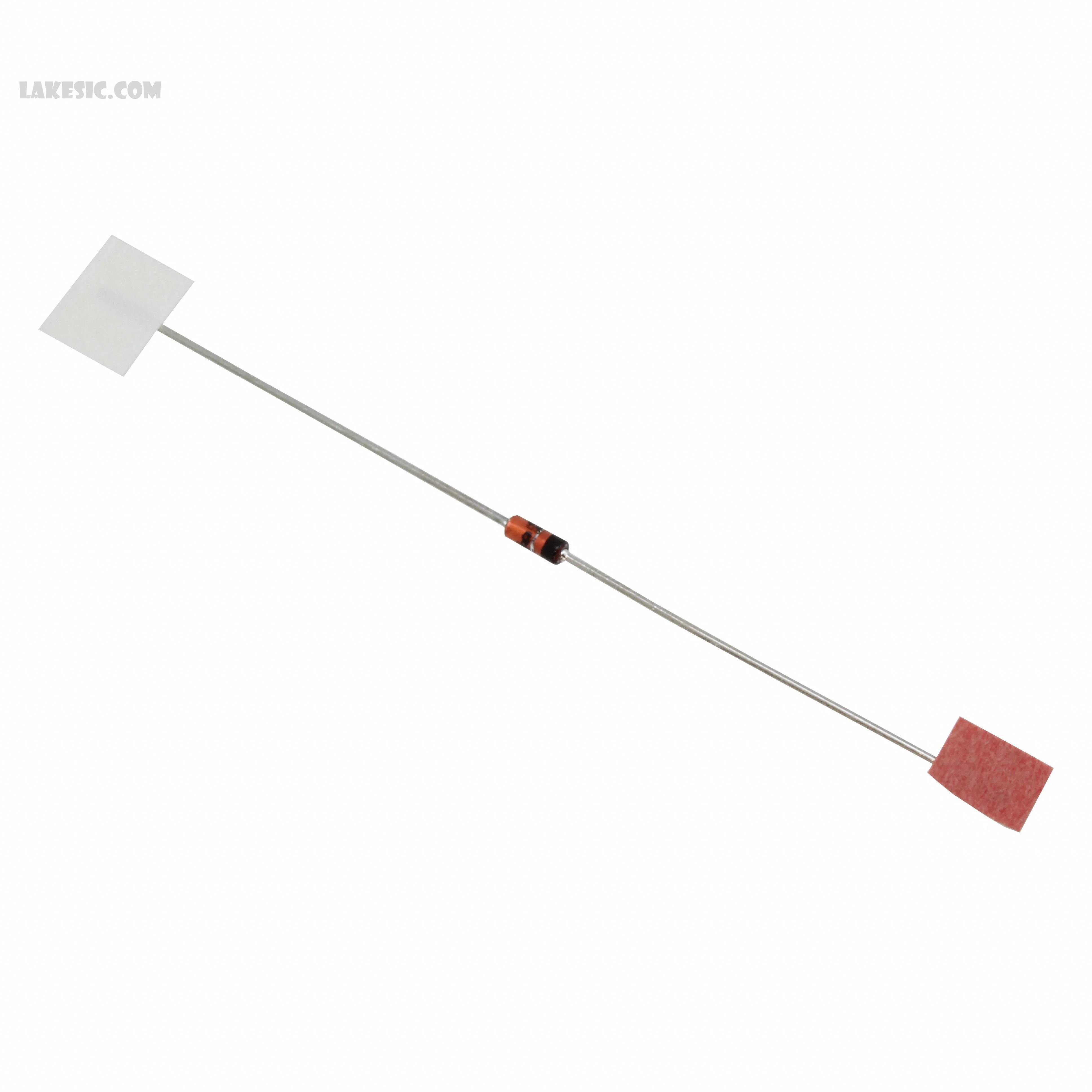

SD103B-TR

SD103B-TR

Part NumberSD103B-TR

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE SCHOTTKY 30V DO35

DatasheetSD103A/B/C

Package / CaseDO-204AH, DO-35, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V Through Hole DO-35

To learn about the specification of SD103B-TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD103B-TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD103B-TR.
We are offering SD103B-TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD103B-TR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SD103A/B/C
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	-
Voltage - Forward (Vf) (Max) @ If	600mV @ 200mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	10ns
Current - Reverse Leakage @ Vr	5µA @ 20V
Capacitance @ Vr, F	50pF @ 0V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35
Operating Temperature - Junction	125°C (Max)
Base Part Number	SD103B
