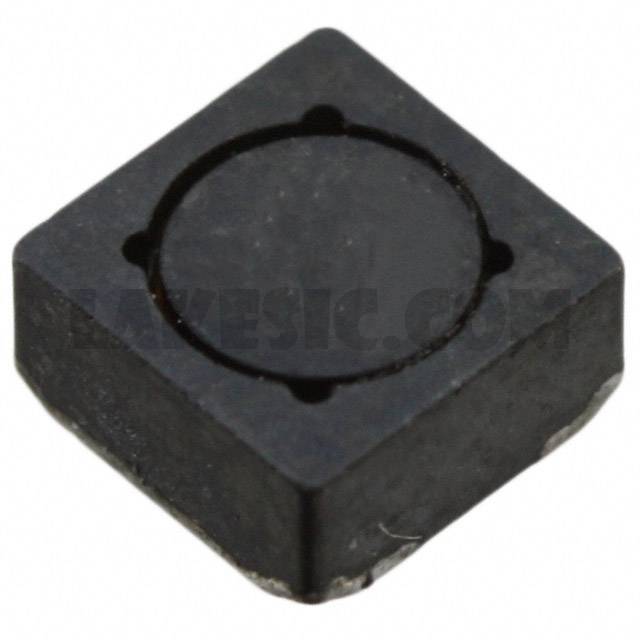

SD25-151-R

SD25-151-R

Part NumberSD25-151-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 150UH 553MA 872.3 MOHM

DatasheetSD Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description150µH Shielded Wirewound Inductor 553mA 872.3mOhm Nonstandard

To learn about the specification of SD25-151-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SD25-151-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SD25-151-R.
We are offering SD25-151-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SD25-151-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SD Series Datasheet
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	SD
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	150µH
Tolerance	±20%
Current Rating (Amps)	553mA
Current - Saturation	328mA
Shielding	Shielded
DC Resistance (DCR)	872.3mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.098" (2.50mm)
