Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SD560B
Standard Package	1
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 5A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	9µA @ 600V
Capacitance @ Vr, F	50pF @ 4V, 1MHz
Mounting Type	Surface Mount

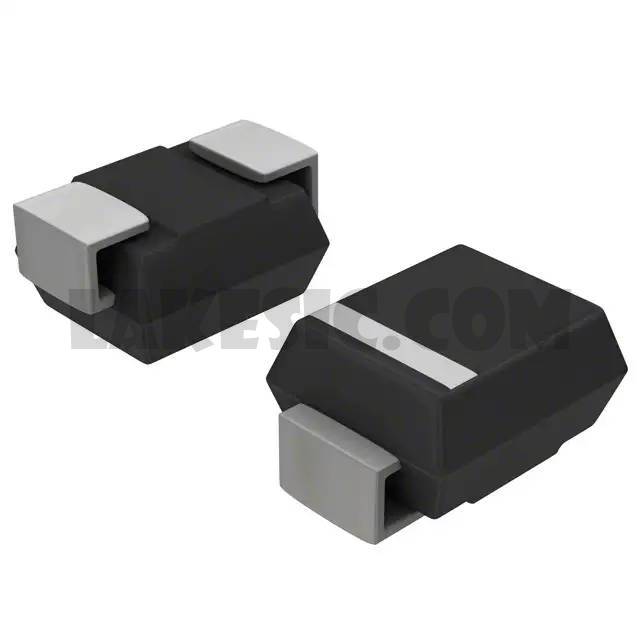

Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
Operating Temperature - Junction	-65°C ~ 175°C
