Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	SDB101-107
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	400V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	10µA @ 400V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	SDB-1
Base Part Number	SDB104

DF1510S-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
HDS10M-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount HDS,	View
DF1510S-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
ABS8 REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 800V Surface Mount ABS,	View
ABS15J REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount ABS,	View
DBLS102G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 100V Surface Mount DBLS,	View
B05S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 50V Surface Mount MBS,	View
KMB25STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 50V Surface Mount MBS,	View
ABS6-G	Comchip Technology, Bridge Rectifier Single Phase Standard 600V Surface Mount ABS,	View
DF01S	ON Semiconductor, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-SDIP,	View
DBLS205G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount DBLS,	View
KMB215STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 150V Surface Mount MBS,	View

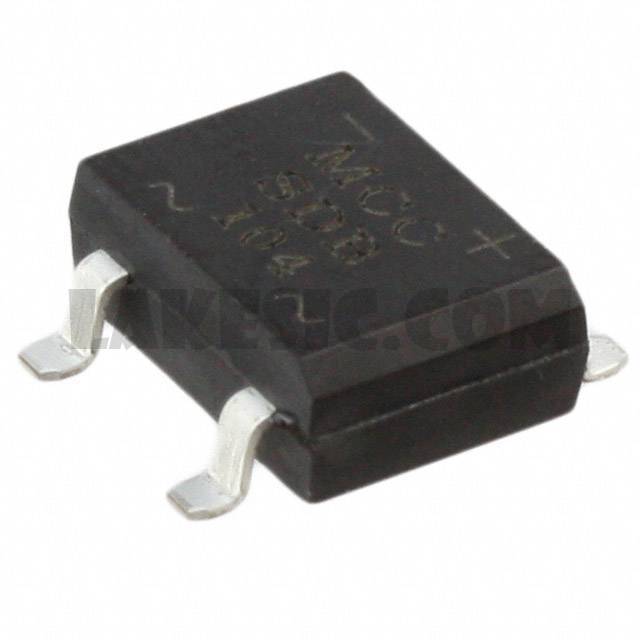

SDB104-TP
