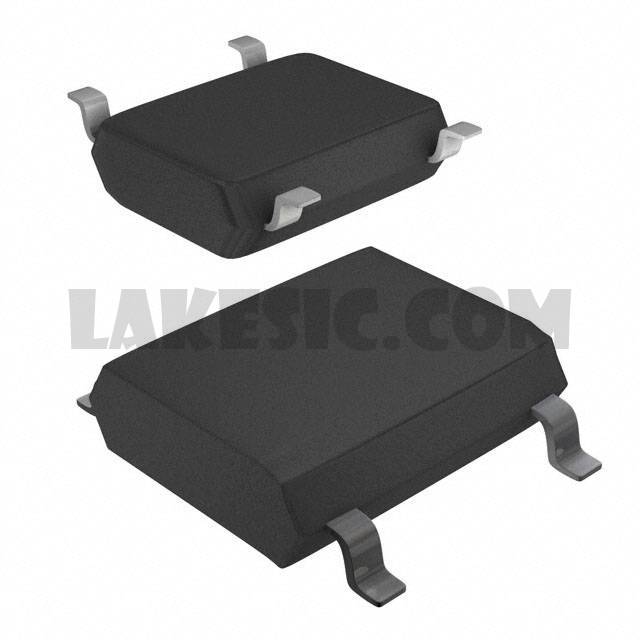

SDB156-TP


SDB156-TP

Part NumberSDB156-TP

Manufacturer

Description

Datasheet

Package / Case4-SMD, Gull Wing

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SDB156-TP - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet
Standard Package3000
ManufacturerMicro Commercial Co
Series-
PackagingTape & Reel (TR)
Part StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)800V
Current - Average Rectified (Io)1.5A
Voltage - Forward (Vf) (Max) @ If1.1V @ 1.5A
Current - Reverse Leakage @ Vr10µA @ 800V
Operating Temperature-55°C ~ 150°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device PackageSDB-1
