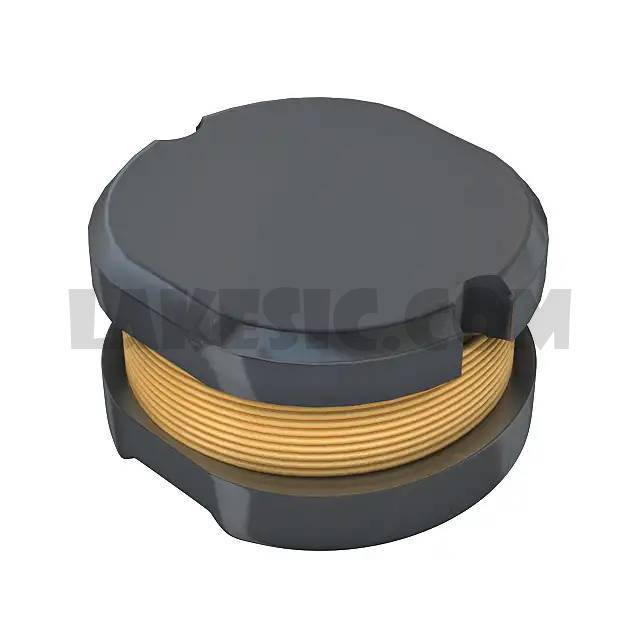

SDR0302-5R6ML


SDR0302-5R6ML

Part NumberSDR0302-5R6ML

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SDR0302-5R6ML - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesSDR0302
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance5.6µH
Tolerance±20%
Current Rating (Amps)1.1A
Current - Saturation1.3A
ShieldingUnshielded
DC Resistance (DCR)160mOhm Max
Q @ Freq18 @ 7.96MHz
Frequency - Self Resonant42MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.118" L x 0.110" W (3.00mm x 2.80mm)
Height - Seated (Max)0.110" (2.80mm)
Base Part NumberSDR0302
