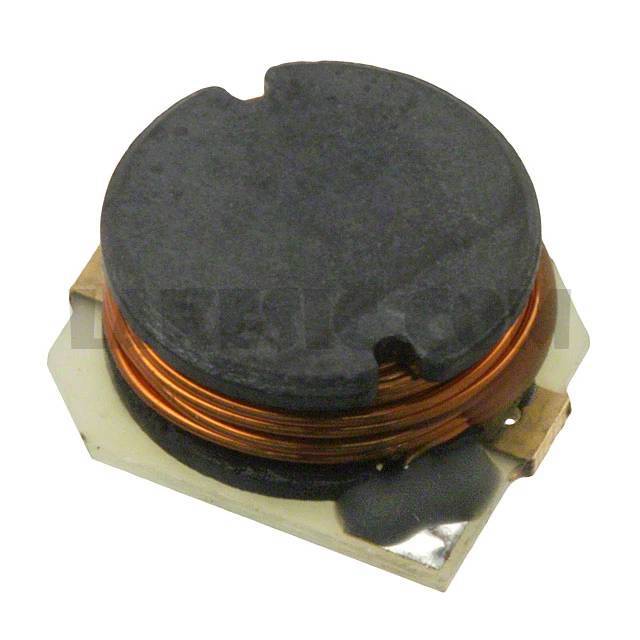

SDR1105-470KL
SDR1105-470KL
Part Number SDR1105-470KL
Description FIXED IND 47UH 2.2A 170 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 47µH Unshielded Wirewound Inductor 2.2A 170mOhm Max Nonstandard
To learn about the specification of SDR1105-470KL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDR1105-470KL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDR1105-470KL.
We are offering SDR1105-470KL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SDR1105-470KL - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SDR1105 Series
Standard Package 1
Manufacturer Bourns Inc.
Series SDR1105
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 47µH
Tolerance ±10%
Current Rating (Amps) 2.2A
Current - Saturation 4A
Shielding Unshielded
DC Resistance (DCR) 170mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Part Number SDR1105
