SDR1307-101KL
SDR1307-101KL

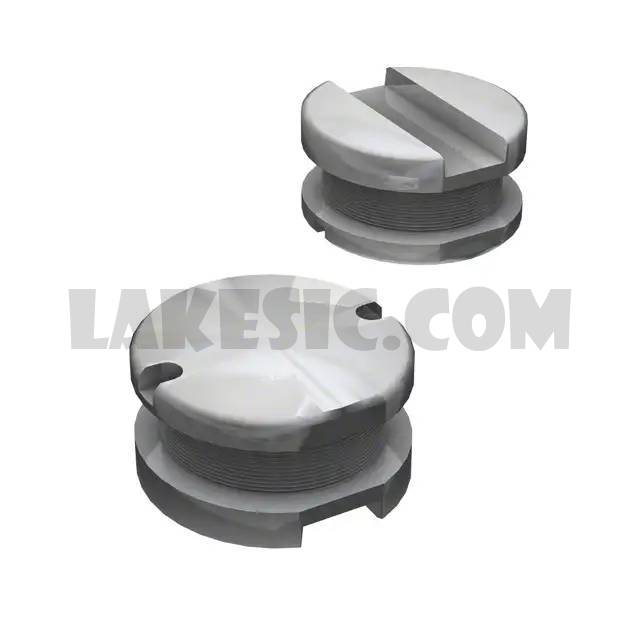

Part Number SDR1307-101KL Description FIXED IND 100UH 1.9A 180 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 100µH Unshielded Wirewound Inductor 1.9A 180mOhm Max Nonstandard
To learn about the specification of SDR1307-101KL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDR1307-101KL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDR1307-101KL.
We are offering SDR1307-101KL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SDR1307-101KL - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SDR1307 Series Standard Package 400 Manufacturer Bourns Inc. Series SDR1307 Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Ferrite Inductance 100µH Tolerance ±10% Current Rating (Amps) 1.9A Current - Saturation 3A Shielding Unshielded DC Resistance (DCR) 180mOhm Max Q @ Freq 25 @ 796kHz Frequency - Self Resonant 5.8MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm) Height - Seated (Max) 0.287" (7.30mm) Base Part Number SDR1307
