SDR1307A-680K
SDR1307A-680K

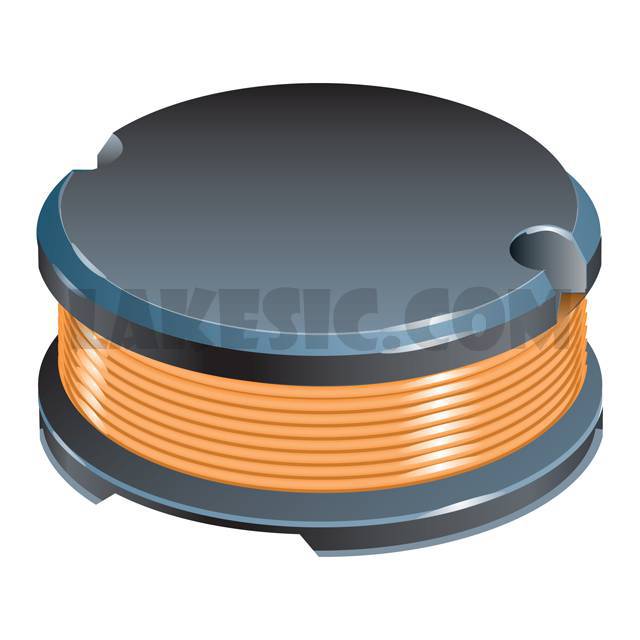

Part Number SDR1307A-680K
Description FIXED IND 68UH 2.3A 120 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 68µH Unshielded Wirewound Inductor 2.3A 120mOhm Max Nonstandard
To learn about the specification of SDR1307A-680K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDR1307A-680K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDR1307A-680K.
We are offering SDR1307A-680K for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SDR1307A-680K - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SDR1307A Series
Standard Package 400
Manufacturer Bourns Inc.
Series SDR1307A
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 68µH
Tolerance ±10%
Current Rating (Amps) 2.3A
Current - Saturation 3.5A
Shielding Unshielded
DC Resistance (DCR) 120mOhm Max
Q @ Freq 24 @ 2.52MHz
Frequency - Self Resonant 7MHz
Ratings AEC-Q200
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Part Number SDR1307A
