SDR1806-150ML
SDR1806-150ML

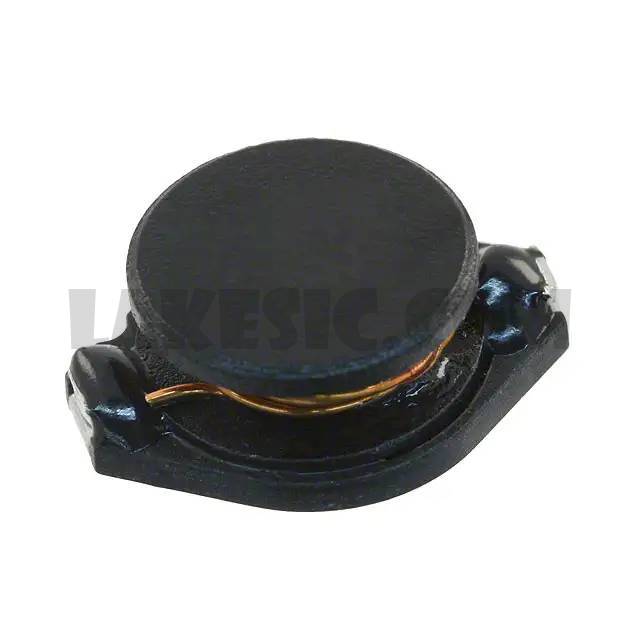

Part Number SDR1806-150ML Description FIXED IND 15UH 4.3A 35 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 15µH Unshielded Wirewound Inductor 4.3A 35mOhm Max Nonstandard
To learn about the specification of SDR1806-150ML, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDR1806-150ML with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDR1806-150ML.
We are offering SDR1806-150ML for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SDR1806-150ML - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SDR1806 Series Standard Package 250 Manufacturer Bourns Inc. Series SDR1806 Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Ferrite Inductance 15µH Tolerance ±20% Current Rating (Amps) 4.3A Current - Saturation 8A Shielding Unshielded DC Resistance (DCR) 35mOhm Max Q @ Freq 20 @ 2.52MHz Frequency - Self Resonant 17MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm) Height - Seated (Max) 0.272" (6.90mm) Base Part Number SDR1806
