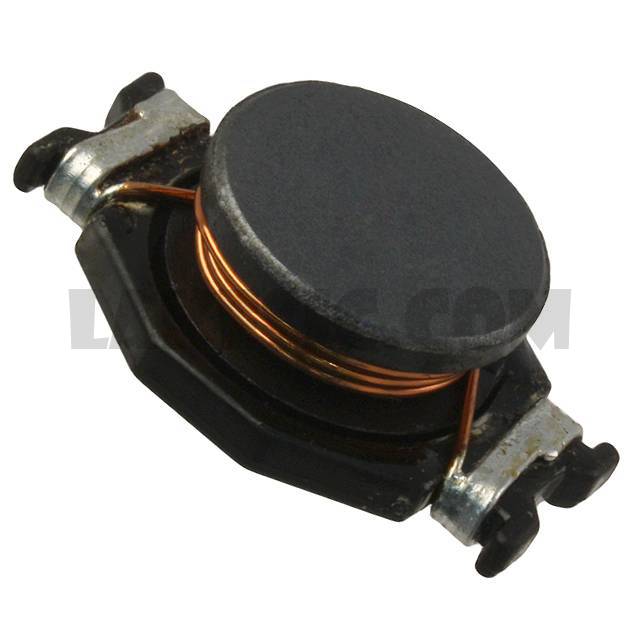

SDR2207-180YL


SDR2207-180YL

Part NumberSDR2207-180YL

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SDR2207-180YL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package250
ManufacturerBourns Inc.
SeriesSDR2207
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance18µH
Tolerance±15%
Current Rating (Amps)4.6A
Current - Saturation8A
ShieldingUnshielded
DC Resistance (DCR)33mOhm Max
Q @ Freq46 @ 5MHz
Frequency - Self Resonant15MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max)0.307" (7.80mm)
Base Part NumberSDR2207
