SDT40A120CTFP

Part NumberSDT40A120CTFP

ManufacturerDiodes Incorporated

DescriptionSCHOTTKYRECTIFIERITO-220AB

DatasheetSDT40A120CT

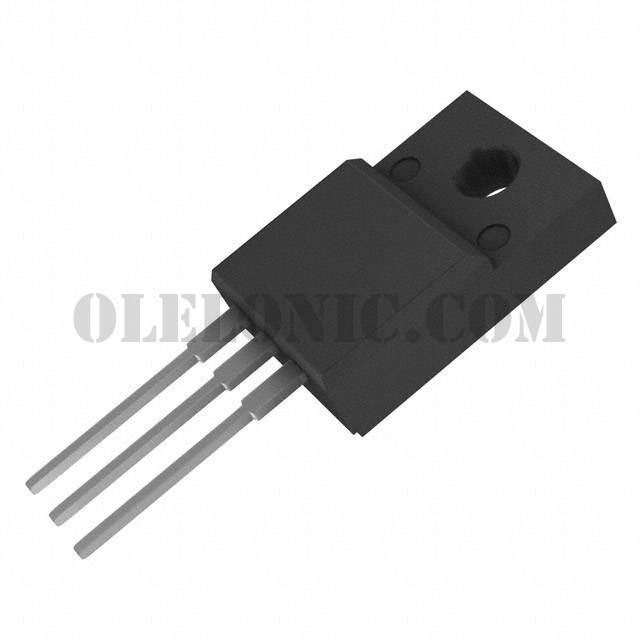

Package / CaseTO-220-3 Full Pack, Isolated Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 120V 20A Through Hole TO-220-3 Full Pack, Isolated Tab

To learn about the specification of SDT40A120CTFP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SDT40A120CTFP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SDT40A120CTFP.
We are offering SDT40A120CTFP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SDT40A120CTFP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	SDT40A120CT
Standard Package	50
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	120V
Current - Average Rectified (Io) (per Diode)	20A
Voltage - Forward (Vf) (Max) @ If	880mV @ 20A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	120µA @ 120V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	ITO-220AB
