Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SDUR1060
Standard Package	50
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	-
Voltage - Forward (Vf) (Max) @ If	2.2V @ 10A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	32ns
Current - Reverse Leakage @ Vr	10µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Through Hole

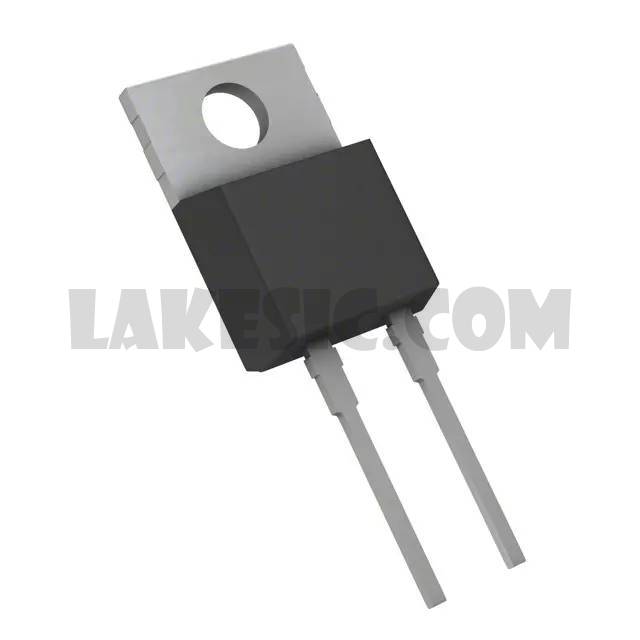

Package / Case	TO-220-2
Supplier Device Package	TO-220AC
Operating Temperature - Junction	-55°C ~ 150°C
