Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SFC3005A
Standard Package	1000
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	800mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 30V
Capacitance @ Vr, F	11pF @ 5V, 1MHz
Mounting Type	Surface Mount

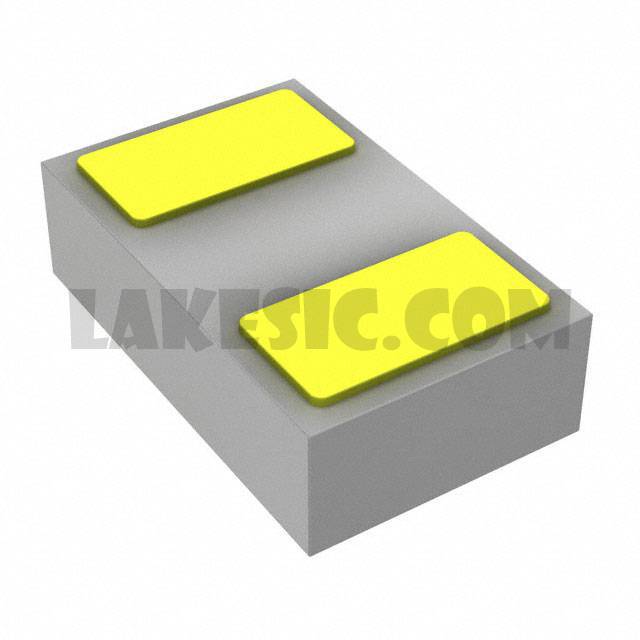

Package / Case	0402 (1006 Metric)
Supplier Device Package	2-WLCSP (1x0.6)
Operating Temperature - Junction	150°C (Max)
