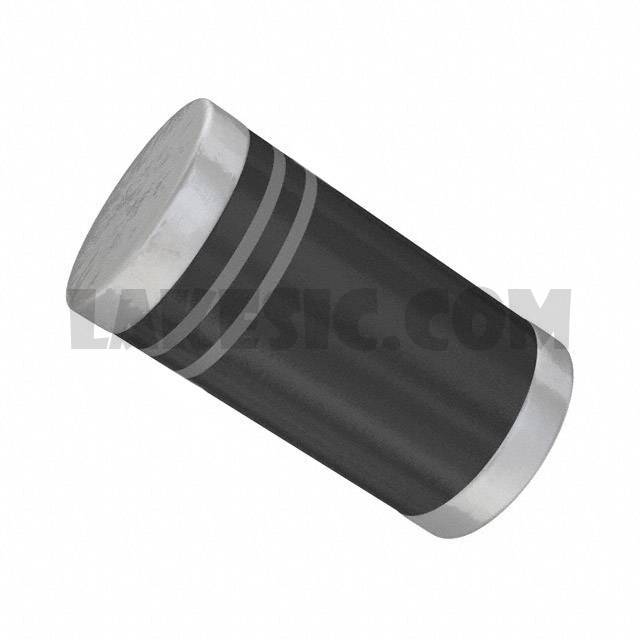

SGL41-60HE3/96

SGL41-60HE3/96

Part NumberSGL41-60HE3/96

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE SCHOTTKY 60V 1A DO213AB

DatasheetBYM13-20-/13-60, SGL41-20-/41-60

Package / CaseDO-213AB, MELF

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 60V 1A Surface Mount GL41 (DO-213AB)

To learn about the specification of SGL41-60HE3/96, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SGL41-60HE3/96 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SGL41-60HE3/96.
We are offering SGL41-60HE3/96 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SGL41-60HE3/96 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BYM13-20-/13-60, SGL41-20-/41-60
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	700mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500µA @ 60V
Capacitance @ Vr, F	80pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-213AB, MELF
Supplier Device Package	GL41 (DO-213AB)
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	SGL41-60
