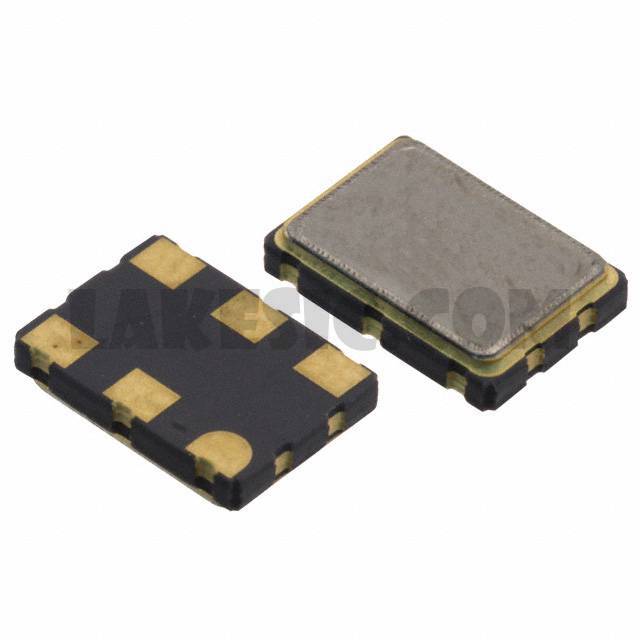

SHPCIE100

Part NumberSHPCIE100

ManufacturerDiodes Incorporated

DescriptionXTAL OSC XO 100.0000MHZ HCSL SMD

DatasheetSHPCIE100

Package / Case6-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100MHz XO (Standard) HCSL Oscillator 3.3V Enable/Disable 6-SMD, No Lead

To learn about the specification of SHPCIE100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SHPCIE100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SHPCIE100.
We are offering SHPCIE100 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SHPCIE100 - Product Attributes

Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	SHPCIE100
Standard Package	500
Manufacturer	Diodes Incorporated
Series	SaRonix-eCera™ ASSP XO™
Packaging	Tape & Reel (TR)
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency	100MHz
Function	Enable/Disable
Output	HCSL
Voltage - Supply	3.3V
Frequency Stability	±50ppm
Absolute Pull Range (APR)	-
Operating Temperature	-40°C ~ 85°C
Current - Supply (Max)	40mA
Ratings	-
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.079" (2.00mm)
Current - Supply (Disable) (Max)	15mA
